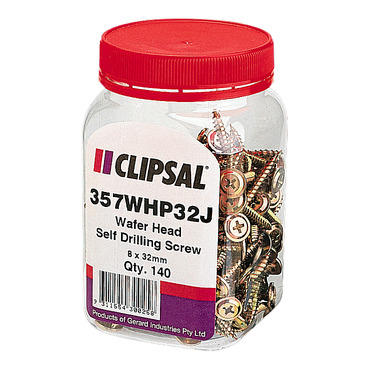

Clipsal - General Accessories Washer Head 8 x 32mm, Needle Point, Jar 140
Item Number: 357WHP32J
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Surface treatment
zinc plated
Physical
Length
32 mm
Screwdriver shape
Philips
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP060307EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
steel
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Screw gauge
8g
Shape of screw head
- washer head
- pozidriv No 2
Screw type
self drilling
Size of screw head
11.7 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.68 cm
Package 1 width
0.68 cm
Package 1 length
1.08 cm
Package 1 weight
0.48 kg
Sustainable packaging
No
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability
N/A
Warranty (in months)
18
