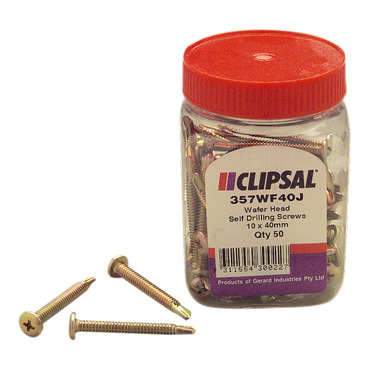

Clipsal - General Accessories Wafer Head Self Drilling, 10 x 40mm, Jar 50
Item Number: 357WF40J
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Physical
Length
40 mm
Screwdriver shape
Philips
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP060307EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Weee label
N/A
Outside of Europe
Screw gauge
10g
Shape of screw head
- pozidriv No 2
- wafer head
Size of screw head
9 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.5 cm
Package 1 width
5.5 cm
Package 1 length
8.4 cm
Package 1 weight
248 g
Unit type of package 2
CAR
Number of units in package 2
20
Package 2 height
175 cm
Package 2 width
160 cm
Package 2 length
240 cm
Package 2 weight
4.96 kg
Sustainable packaging
No
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability
N/A
Warranty (in months)
18
