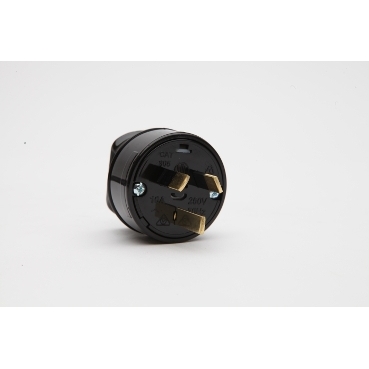

Clipsal - 900 Series Plug Back Entry, Rewireable, Heavy Duty, 10A, White | Black

Item Number: PDL905BK

White 1 PCE 0
Black 1 PCE 0
Charcoal Grey 1 PCE 0

Where To Buy

Datasheet

Download

Specifications

Design

Range of product	900 Series
Product or component type	plug
Colour tint	white
Surface finish	gloss

Physical

Width	45 mm
Rated current	10 A
[ue] rated operational voltage	230/240 V
Pin number	3
Ambient air temperature for operation	-10...40 °C
Connector type	screw terminals
Quantity per set	set of 20
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
	Outside of Europe
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Package 1 bare product quantity	1
Diameter	45 mm
Network frequency	50 Hz
Cable cross section	0.75...1.5 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.5 cm
Package 1 width	4.5 cm
Package 1 length	6 cm
Package 1 weight	0.038 kg
Unit type of package 2	CAR
Number of units in package 2	200
Package 2 height	21 cm
Package 2 width	31 cm
Package 2 length	50 cm
Package 2 weight	10100.0 g
Unit type of package 3	PAL
Number of units in package 3	4000
Package 3 height	140 cm
Package 3 width	114 cm
Package 3 length	114 cm
Package 3 weight	152.0 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.20318023026413495
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.011393878440508909
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.006975037297799752
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.4192
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.09315077701674664
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	3.73389992301919
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	5
Halogen-free status	Halogen free product
Pvc free	Yes
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
