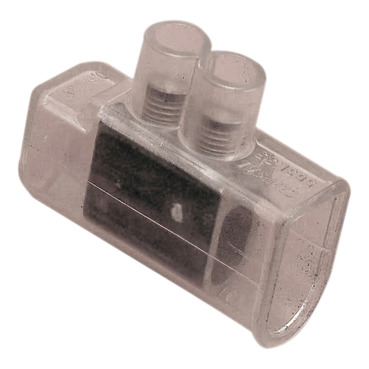

Clipsal - 500 Series Cable Connector Two Screw, Clear Insulated, 80A, Suits up to 2 x 35mm² Cables

Item Number: 563K35

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793008907	-
10	BB1	9318793008914	-
100	CAR	29318793008901	-

Specifications

Design

Colour	housing: transparent
Product brand	Clipsal

Physical

Provided equipment	2 x screw
Rated voltage	415...500 V AC
Connector type	screw terminals
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2309044_V1
Eu rohs directive	Compliant

Material

Contacts material	brass
Material	zinc plated steel: screw PP (polypropylene): housing

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Cable cross section	25...35 mm² solid or flexible 2 without cable end sleeve
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.3 cm
Package 1 width	2.3 cm
Package 1 length	5.8 cm
Package 1 weight	64 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.226076923076923
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.13165384615384615
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.46661538461538465
Carbon footprint of the installation phase [a5]	0.5 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.20140769230769232
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.025753846153846
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
