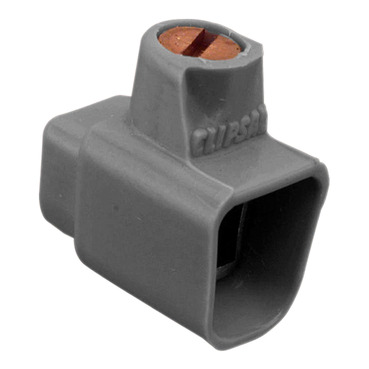

Clipsal - 500 Series Cable Connector Single Screw, Suits up to 4 x 2.5mm² Cables
Item Number: 563AA1
Datasheet
Close
Specifications
Design
Colour
housing: grey
Product brand
Clipsal
Physical
Provided equipment
1 x screw
Rated voltage
415 V AC
Connector type
screw terminals
Rohs exemption information
Yes
Environmental disclosure
ENVPEP121019EN
Eu rohs directive
Compliant with Exemptions
Reach regulation
Reference contains Substances of Very High Concern above the threshold
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Contacts material
brass
Material
plastic: housing
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cable cross section
2.5...2.5 mm² fine stranded 2 without cable end sleeve
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 cm
Package 1 width
0.9 cm
Package 1 length
2.1 cm
Package 1 weight
3 g
Sustainable packaging
No
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability
N/A
Warranty (in months)
18
