Specifications
Design
Range
EVlink
Product or component type

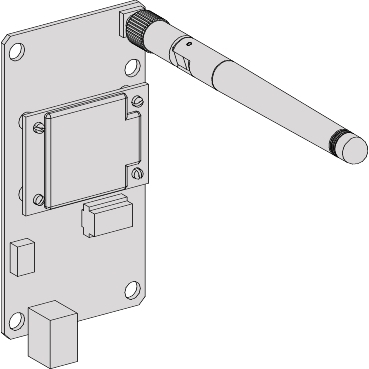

WiFi board
Physical
Number of channels
1
Communication port protocol
Ethernet TCP/IP
Communication network type
Wi-Fi
Width
45 mm
Height
90 mm
Depth
15 mm
Ambient air temperature for operation
-20...80 °C
Ambient air temperature for storage
-20...85 °C
Relative humidity
5...95 %
Standards
- IEEE 802.11b
- IEEE 802.11a
- IEEE 802.11g
Product certifications
CE
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
At least in Europe
Weee label
No
Bandwidth
- 2.4...2.4 GHz ETSI conforming to IEEE 802.11b/g/n
- 5 GHz ETSI conforming to IEEE 802.11a
Encryption protocol
- WEP 64 WEP
- WEP 128 WEP
- WPA-PSK WPA-PSK
- WPA2-PSK WPA2-PSK
- WPA-TKIP PEAP
- WPA2-AES PEAP
Ethernet service
Ethernet bridge
Receiver sensitivity
- - 90...- 74 dBm conforming to IEEE 802.11a
- - 92...- 86 dBm conforming to IEEE 802.11b
- - 89...- 72 dBm conforming to IEEE 802.11g
[us] rated supply voltage
5 V DC
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6 cm
Package 1 width
16 cm
Package 1 length
25 cm
Package 1 weight
224 g
Sustainable packaging
No
Documents & downloads
hide showFilter items
-
All
-

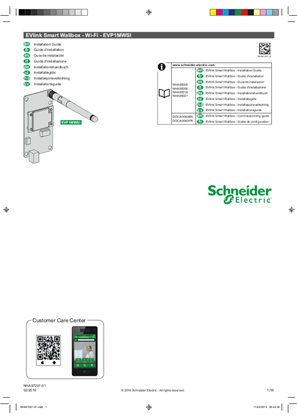

Installation Instruction
-
