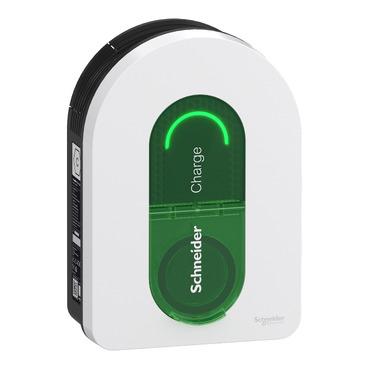

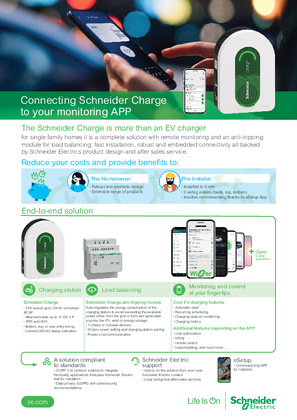

Schneider Charge, Charging station, 1P+N/3P+N, 1xT2S, 7.4/11/22kW, 16/32A

Schneider Charge, Charging station, 1P+N/3P+N, 1xT2S, 7.4/11/22kW, 16/32A

Item Number: EVH5A22N2S

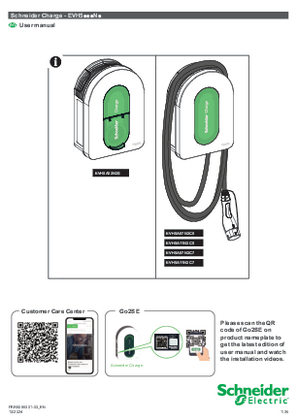

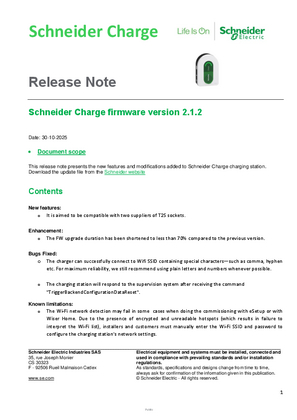

Datasheet

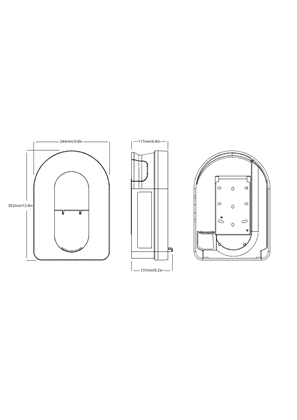

Product Dimensions

Width icon

Width244 mm

Height icon

Height352 mm

Depth icon

Depth117 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Schneider Charge

Product or component type

charging station

Physical

Mounting mode

wall-mounted

Socket number

1

Local signalling

red, green and blue 1 LED, function: status indication

Protection type

earth-leakage protection

Height

352 mm

Width

244 mm

Depth

117 mm

Net weight

3.2 kg

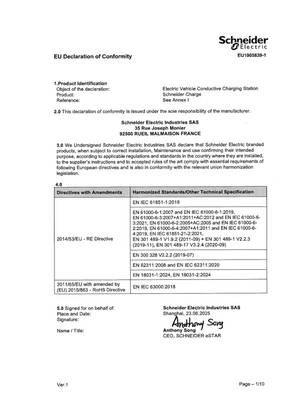

Standards

  • EN 61851
  • IEC 61851-1
  • EN 61000-6-1
  • EN 61000-6-3

Communication network type

  • Wi-Fi
  • wireless
  • Ethernet

Communication port protocol

OCPP 1.6, for connection to the Schneider Electric Wiser app

Ip degree of protection

IP55 conforming to EN/IEC 60529

Ik degree of protection

IK10

Ambient air temperature for operation

-30...45 °C

Ambient air temperature for storage

-40...85 °C

Relative humidity

5...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2310034_V1

Circularity profile

ENVEOLI2310034_V1

Others

Commercial status history

  • SESA211158
  • Thu Jun 13 04:01:00 EDT 2024
  • From Import Local
  • From 04 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

32

Product name

Schneider Charge

Poles description

  • 1P + N
  • 3P + N

Nominal output power

  • 7.4 kW 32 A
  • 11 kW 16 A
  • 22 kW 32 A

Socket outlet type

T2S

Output type

socket-outlet T2 with shutter front face

[us] rated supply voltage

  • 230...240 V AC 50...60 Hz +/- 10 %
  • 400 V AC 50...60 Hz +/- 10 %

Earthing system

  • IT 230
  • TT
  • TN-S

Number of inputs

1

Input type

dry contact for dynamic energy management

Targeted country

  • Australia
  • Europe

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

22.500 cm

Package 1 width

29.000 cm

Package 1 length

39.500 cm

Package 1 weight

4.708 kg

Unit type of package 2

P12

Number of units in package 2

32

Package 2 height

104.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

164.000 kg

Packaging without single use plastic

Yes

Packaging made with recycled cardboard

Yes

Scip number

ab6451be-b3f4-4070-b9b6-e8f0e546f1eb

Product contributes to saved and avoided emissions

Carbon footprint (kg.eq.co2 per cr, total life cycle)

582.4301110576376
