Schneider Charge Pro Charging station 1P-3P, 1xT2S, 7.4-11-22kW, 16-32A

Item Number: EVB4S22N40

1 PCE 0

Where To Buy

Datasheet

Download

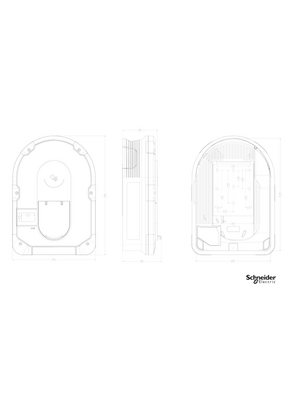

Product Dimensions

Width292 mm

Height418 mm

Depth136 mm

See full specifications

Specifications

Design

Range	Schneider Charge Pro
Product or component type	charging station

Physical

Mounting mode	wall-mounted pedestal mount
Mounting support	pedestal, to be ordered separately
Type of installation	indoor/outdoor
Socket number	1
Quantity per set	set of 1
Provided equipment	1 residual direct current detection device (RDC-DD) integrated 1 Wi-Fi module integrated 2 Ethernet interface module integrated
Control type	1 white push-button
Local signalling	on charge: LED (blue) error: LED (red) available: LED (green) start: LED (white) reserved: LED (orange)
Height	418 mm
Width	292 mm
Depth	136 mm
Net weight	3.9 kg
Standards	EN/IEC 61851-1 EN/IEC 61439-7 IEC 62955 EN/IEC 61851-21-2 EN/IEC 61000-6-1 EN/IEC 61000-6-2 EN/IEC 61000-6-3 EN/IEC 61000-6-4 EN 301489-1 EN 301489-3 EN 301489-17 EN 301-489-52 EN 300328 EN 300330 ETSI EN 301 511 EN 301-908-1 EN 301-908-2 ETSI EN 301 908-13 EN/IEC 62311
Product certifications	CE UKCA EV Ready 2.0A
Communication network type	Wi-Fi Ethernet TCP/IP
Communication port protocol	OCPP 1.6J, for connection to CPO & CSMS OCPP 1.6J, for connection to EVCE
Type of setting	without
Ip degree of protection	IP55
Ik degree of protection	IK10
Ambient air temperature for operation	-30...50 °C
Ambient air temperature for storage	-30...50 °C
Relative humidity	5...95 %
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2410035EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

China carbon footprint certification	Not certified
China energy label	N/A
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	16
Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	Schneider Charge Pro
Poles description	1P or 3P
Nominal output power	7.4 kW 32 A 230 V 11 kW 16 A 400 V 22 kW 32 A 400 V
Socket outlet type	T2S
Output type	socket-outlet T2 with shutter front face
Access control system	free access badge MIFARE DESFire EV1 badge MIFARE DESFire EV2 badge MIFARE RFID authentication card MIFARE DESFire EV1 RFID authentication card MIFARE DESFire EV2 RFID authentication card MIFARE
Protection device type	residual direct current detection device (RDC-DD) - 6 mA
[us] rated supply voltage	220...240 V AC 50/60 Hz +/- 10 % 380...415 V AC 50/60 Hz +/- 10 %
Earthing system	TT TN-S TN-C IT only between 220 VAC and 240 VAC
Number of inputs	1
Input type	auxiliary for dynamic energy management NO contact auxiliary for dynamic energy management NC contact french electronic TIC electricity meter for dynamic energy management anti-tripping module for dynamic energy management auxiliary contact for external iMNX
Maximum supply current	32 A
Communication service	JSON smart charging
Local display	without
Operating altitude	0...2000 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	21.500 cm
Package 1 width	39.000 cm
Package 1 length	58.000 cm
Package 1 weight	6.500 kg
Unit type of package 2	P12
Number of units in package 2	16
Package 2 height	100.000 cm
Package 2 width	80.000 cm
Package 2 length	120.000 cm
Package 2 weight	118.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.10853610245589525
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0030019353127849037
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.002027781610843937
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.06638232008850224
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.01226000838255444
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	N/A
Halogen-free status	N/A
Silicone-free	N/A
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	No
Total lifecycle carbon footprint	0.1922081478505808
China green design product	No
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	ENVEOLI2410035_V1
Removable battery	No
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
