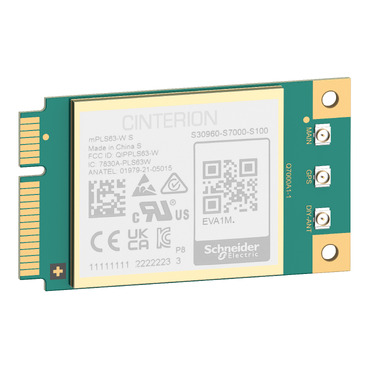

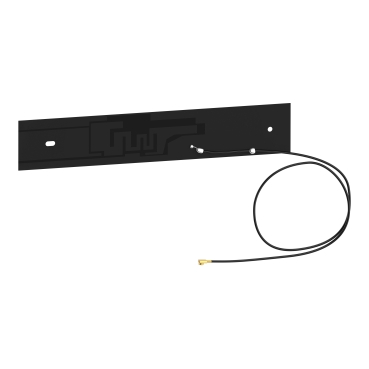

EVlink Pro AC 4G modem kit with 4G cellular modem and 2 antennas
Item Number: EVA1MS
This communication accessory for EVlink Pro AC contains a 4G modem and 2 antennas that are installed inside the charging station. It allows the EVlink Pro AC charging station to connect to EV Advisor platform or an external supervision system or any cloud based software. There is an instruction sheet that provides step by step guidance on the installation of the 4G modem and the antennas.
Specifications
Design
| Range | EVlink |
|---|---|
| Product or component type | 4G modem |
| Product compatibility | charging station |
Physical
| Range compatibility | EVlink EVlink Pro AC |
|---|---|
| Communication network type |
|
| Mounting mode | by screws |
| Integrated connection type | micro SIM (3FF) card slot |
| Width | 120 mm |
| Height | 20 mm |
| Depth | 160 mm |
| Net weight | 70 g |
| Ambient air temperature for operation | -30...50 °C |
| Ambient air temperature for storage | -40...80 °C |
| Relative humidity | 5...95 % |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2202024EN |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
Product Brochures
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
System User Guide
-

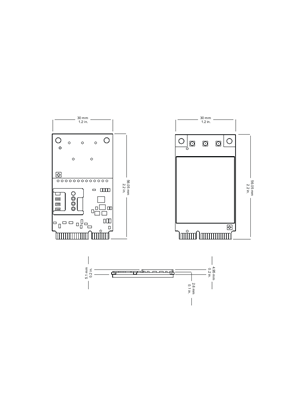

Technical Drawing
-
