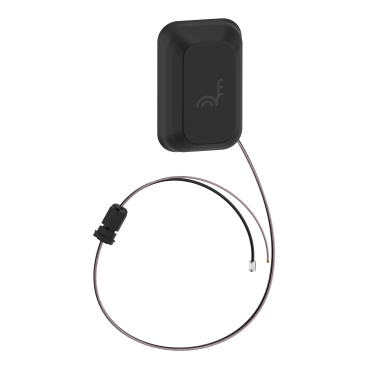

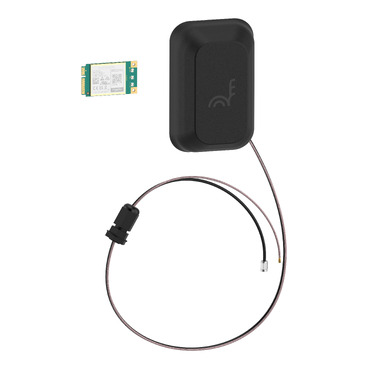

EVlink Pro AC 4G modem kit with 4G cellular modem and 1 antenna
Item Number: EVA1MM
This communication accessory for EVlink Pro AC Metal contains a 4G modem and an antenna. The modem is installed inside the charging station and the antenna is outside the charging station. It allows the EVlink Pro AC Metal charging station to connect to EV Advisor platform or an external supervision system or any cloud based software. There is an instruction sheet that provides step by step guidance on the installation of the 4G modem and the antenna.
Specifications
Design
| Range | EVlink |
|---|---|
| Product or component type | 4G modem |
| Product compatibility | charging station |
Physical
| Range compatibility | EVlink EVlink Pro AC Metal |
|---|---|
| Communication network type |
|
| Mounting mode | by screws |
| Integrated connection type | micro SIM (3FF) card slot |
| Width | 120 mm |
| Height | 72 mm |
| Depth | 160 mm |
| Net weight | 400 g |
| Ambient air temperature for operation | -30...50 °C |
| Ambient air temperature for storage | -40...80 °C |
| Relative humidity | 5...95 % |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2202024EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
Product Brochures
-
Technical Data Catalogues
-

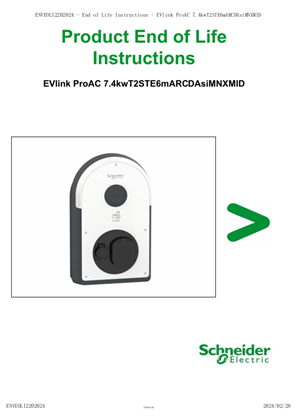

End of Life Manual
-
Environmental Disclosure
-

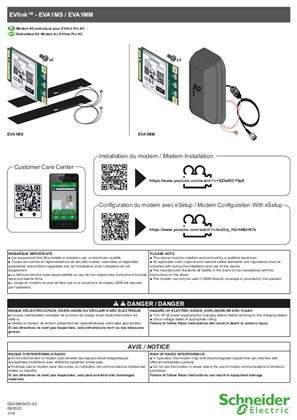

Installation Instruction
-
System User Guide
-

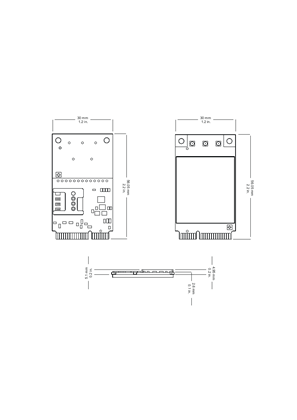

Technical Drawing
-

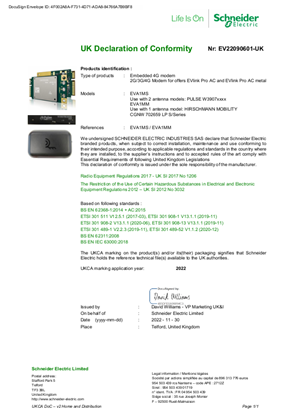

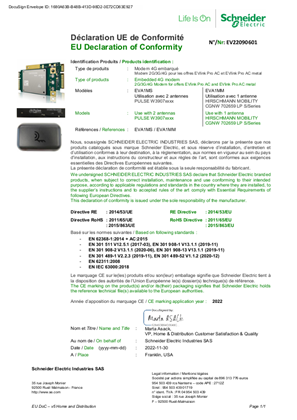

Declaration of Conformity
-

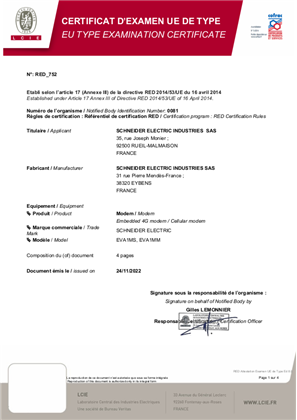

Certificates (MSDS)
-
Declaration of Conformity (Sustainability)

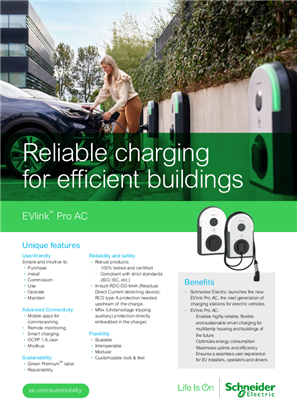

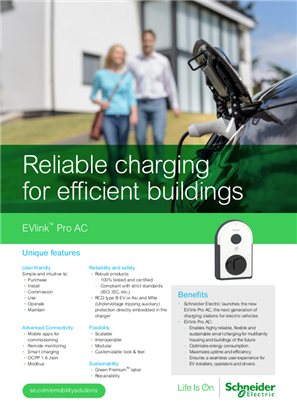

EVlink Pro AC - Brochure
VERSION
1.3
DATE
29 Sep 2025
REVISION
1.3
EVlink Pro AC
VERSION
1.1
DATE
09 Sep 2024
REVISION
1.1

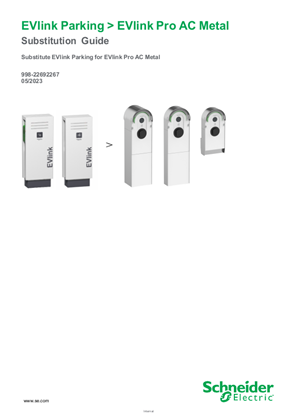

EVlink Parking Substitution Guide
VERSION
1.0
DATE
14 Aug 2023
REVISION
1.0

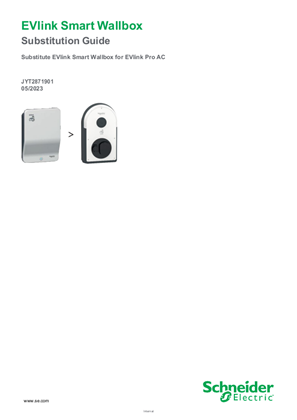

EVlink Smart Wallbox Substitution Guide
