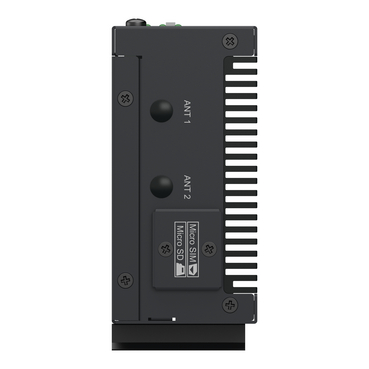

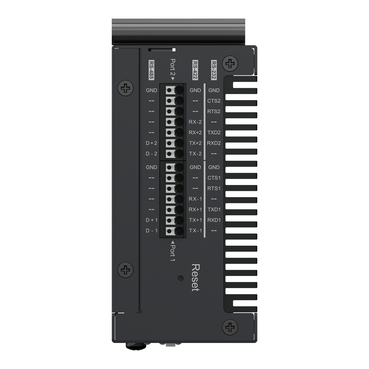

EcoStruxure EV Charging Expert EV charge controller 250 charging stations, 20 zones, dynamic load management
Item Number: HMIBX1A0NEVB100SCP
Specifications
Design
| Range | EcoStruxure EV Charging Expert |
|---|---|
| Product or component type | EV charge controller |
| Device application | to manage the overall energy allocated to each vehicle |
Physical
| Type of installation | indoor |
|---|---|
| Range compatibility |
|

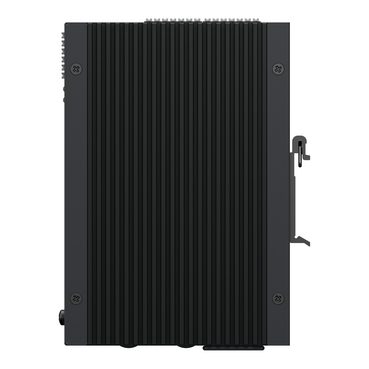

| Mounting mode | wall mount |
| Mounting support | DIN rail |
| Mounting position | horizontal/vertical |
| Load type | 250 charge points |
| Function available |
|
| Power consumption in w | 24 W |
| Height | 141 mm |
| Width | 99 mm |
| Depth | 48 mm |
| Net weight | 950 g |
| Standards |
|
| Product certifications |
|
| Ip degree of protection | IP20 |
| Ambient air temperature for operation | -20...70 °C |
| Ambient air temperature for storage | -40...80 °C |
| Relative humidity | 10...95 % |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2405013EN |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
Product Brochures
-
CAD Files and Packs
-
Other technical guide
-
Environmental Disclosure
-
End of Life Manual
-
Operating Manuals
-
System User Guide
-
Technical illustration
-
Application Notes
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
-
Firmware
EcoStruxure EV Charging Expert integrated into EcoStruxure Microgrid Advisor
VERSION
1.1
DATE
18 May 2026
REVISION
1.1
Discover the benefit of integrating EcoStruxure EV Charging Expert into EcoStruxure Building Operation
VERSION
1.0
DATE
07 Apr 2026
REVISION
1.0

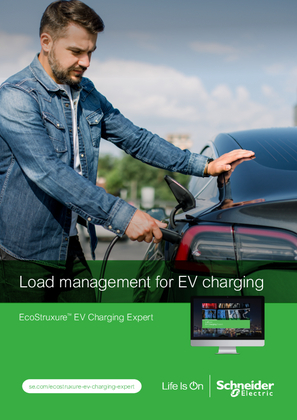

EcoStruxure EV Charging Expert for HMIBX1 - Brochure
VERSION
1.1
DATE
03 Mar 2026
REVISION
1.1
eMobility solution for a large EV infrastructure combining public and private usage - Application Note
VERSION
1.0
DATE
02 Jul 2026
REVISION
1.0
eMobility solution for residential buildings - Application Note
VERSION
1.0
DATE
02 Jul 2026
REVISION
1.0
eMobility solution for a large EV infrastructure combining public and private usage - EVlink Pro DC and EcoStruxure EV Charging Expert Application Note
VERSION
1.0
DATE
27 May 2026
REVISION
1.0
eMobility solution for Heavy Fleets - eTruck Depot - EVlink Pro DC ranges
VERSION
1.0
DATE
27 May 2026
REVISION
1.0

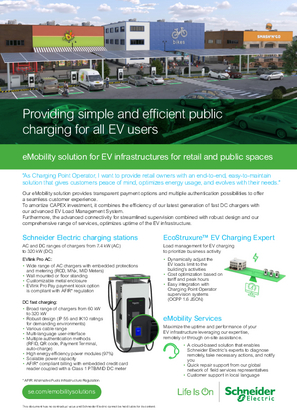

eMobility solution for EV infrastructures for retail and public spaces (EVlink Pro DC)
VERSION
1.0
DATE
06 Mar 2026
REVISION
1.0

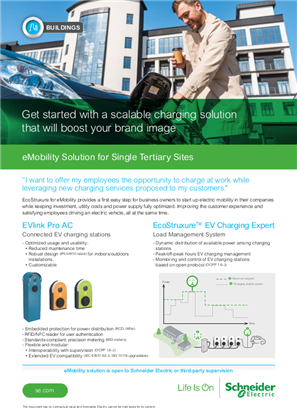

eMobility Solution for Single Tertiary Sites - Application Note
VERSION
1.0
DATE
03 Mar 2026
REVISION
1.0

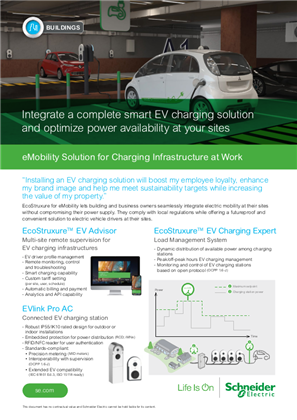

eMobility Solution for Charging infrastructure at work - Multisite - Application Note
VERSION
1.0
DATE
03 Mar 2026
REVISION
1.0

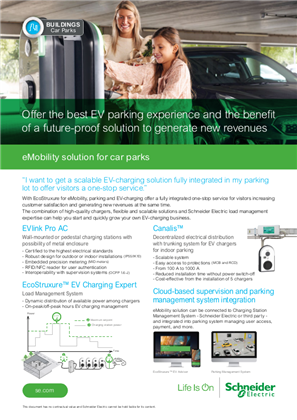

eMobility Solution for Car Parks - Application Note
VERSION
1.0
DATE
03 Mar 2026
REVISION
1.0

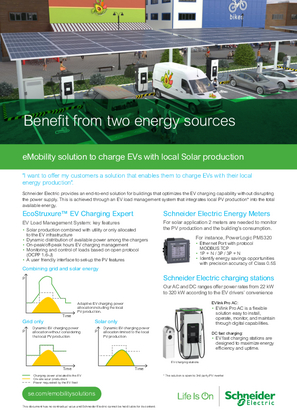

Charging EVs with local solar production - Application Note EVlink Pro DC
VERSION
1.0
DATE
03 Mar 2026
REVISION
1.0
eMobility solution for Heavy Fleets - eTruck Depot - Application Note (Schneider StarCharge Fast)
VERSION
1.0
DATE
03 Mar 2026
REVISION
1.0

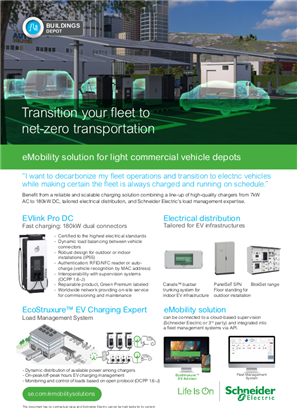

eMobility solution for Light Commercial Electrical Vehicle Depots - Application Note
VERSION
1.0
DATE
09 Apr 2025
REVISION
1.0
HMIBX1A0NEVB100SCP EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
HMIBX1A0NEVB100SCP EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
HMIBX1A0NEVB100SCP EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
HMIBX1A0NEVB100SCP EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
HMIBX1A0NEVB100SCP REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
HMIBX1A0NEVB100SCP REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Frequently Asked Questions
EV Charging Expert – Firmware Migration Blocked Due to Faulty or Invalid Connected Charger
Hide Show
Issue: EV Charging Expert (Load Management System) is unable to proceed with firmware migration if any connected charger is in a faulty, charging, or disconnected state.
Product Line: EcoStruxure EV Charging Expert
Environment: HMIBX1A0NEVB100SCP, HMIBSCEA53D1EM30
Resolution:
The firmware migration process in EV Charging Expert requires all connected EV chargers to be in a valid and healthy state.
If even one charger connected to the system is:
- In error state
- Actively charging
- Disconnected or not communicating properly
…the firmware migration will be blocked, and the customer may encounter this error during the upgrade process where the Migrate button will be greyed out.
Corrective Actions:
- Verify that all connected chargers are online and communicating correctly.
- Ensure no charger is actively charging during the migration.
- Resolve any existing faults or error states on all chargers.
- Confirm all chargers are in a ready / idle state before retrying the firmware migration.
Once the issue is resolved, the migration button will become available (enabled) again, allowing you to proceed with the firmware migration.
