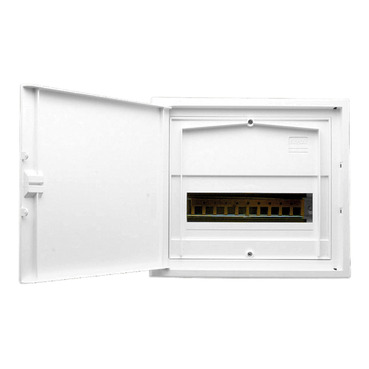

Resi MAX Consumer Switchboards Switchboard Enclosure Series 4FCW, 11 Module, Flush Mount, Full DIN Rail | White Electric

Item Number: 4FCW11FD-WE

White Electric 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width310 mm

Height281 mm

Depth82 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795011912	WE
5	CAR	19318795011919	WE

Specifications

Design

Range of product	Series 4FCW
Product brand	Clipsal

Physical

Device mounting	flush
Height	281 mm
Width	310 mm
Depth	82 mm
Mounting support	DIN rail
Ip degree of protection	IP34
Environmental disclosure	ENVPEP121018EN
Eu rohs directive	Compliant

Material

Material	plastic: housing

Others

Legacy weee scope	Out
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
Average percentage of recycled plastic content	0 %
Average percentage of bio-based plastic content	0 %
Package 1 bare product quantity	1
Number of horizontal rows	1
Number of modules	11
Cover type	transparent closed cover
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.6 cm
Package 1 width	28.1 cm
Package 1 length	31.5 cm
Package 1 weight	3042 g
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Average percentage of recycled metal content	0 %
Warranty (in months)	18
