Resi MAX Consumer Switchboards Switchboard Enclosure Series 4FCC, 15 Module, Flush Mount | White Electric
Item Number: 4FCC15-WE

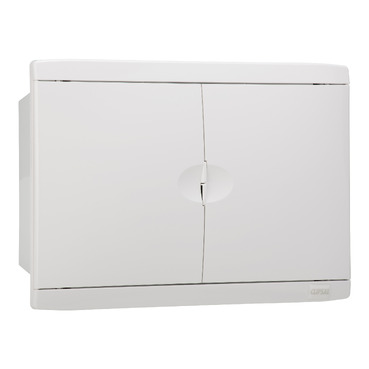

This Resi MAX switchboard is a flush mounted distribution enclosure. This switchboard is composed of 1 row of 15 modules of 18mm. It can accommodate all types of modular switchgear. The dimensions are (W) 376mm x (H) 258mm x (D) 70mm. The colour of the switchboard is white electric. Enclosure material is plastic.
Specifications
Design
| Range of product | Series 4FCC |
|---|---|
| Product brand | Clipsal |
Physical
| Device mounting | flush |
|---|---|
| Height | 258 mm |
| Width | 376 mm |
| Depth | 70 mm |
| Mounting support | DIN rail |
| Ip degree of protection | IP40 |
| Environmental disclosure | ENVPEP1210018EN |
| Eu rohs directive | Not Applicable/Out of Scope |
Material
| Material | plastic: housing |
|---|
