Resi MAX Consumer Switchboards Switchboard Enclosure Series 4FC, 11 Module, Full DIN Rail, Flush Mount | White Electric
Item Number: 4FC11FD-WE

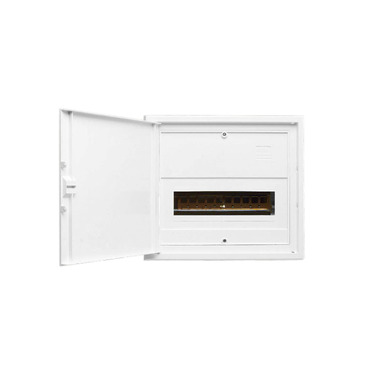

This Resi MAX switchboard is a flush mounted distribution enclosure. This switchboard is composed of 1 row of 11 modules of 18mm. It can accommodate all types of modular switchgear. The colour of the switchboard is white electric. Enclosure material is plastic.
Datasheet
Close
Specifications
Design
Range of product
Series 4FC
Product brand
Clipsal
Physical
Device mounting
flush
Height
281 mm
Depth
82 mm
Mounting support
DIN rail
Eu rohs directive
Not applicable, out of EU RoHS legal scope
Environmental disclosure
ENVPEP121018EN
Circularity profile
N/A
Material
Material
plastic: housing
Others
Commercial status history
- SESA301466
- Sun Feb 04 09:39:00 EST 2024
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Number of horizontal rows
1
Number of modules
11
Cover type
- transparent
- closed cover
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
31.3 cm
Package 1 width
10.5 cm
Package 1 length
28.0 cm
Package 1 weight
2923.0 g
