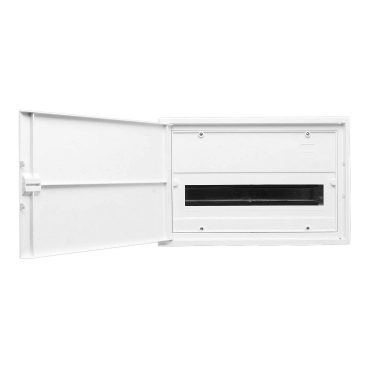

Resi MAX Consumer Switchboards Switchboard enclosure 17 modules, flush mount | White Electric

Item Number: 4FCW17FD-WE

White Electric 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width419 mm

Height280 mm

Depth82 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318795011455	WE
4	CAR	19318795011452	WE

Specifications

Design

Range of product	Series 4FCW
Product brand	Clipsal

Physical

Device mounting	flush
Height	280 mm
Width	419 mm
Depth	82 mm
Mounting support	DIN rail
Ip degree of protection	IP34
Environmental disclosure	ENVPEP121018EN
Eu rohs directive	Compliant

Material

Material	plastic: housing

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Number of horizontal rows	1
Number of modules	17
Cover type	transparent closed cover
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	4.05 kg
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Average percentage of recycled metal content	0 %
Warranty (in months)	18
