Datasheet
Features
- Helps increase installation speed by up to 10 times, reduce wiring effort and lessen chances of hotspots caused by loose cable connections
- Makes wiring easy and installations time efficient

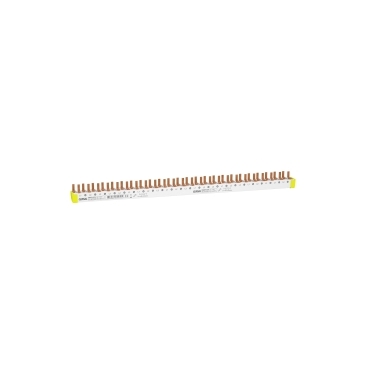

- SLIM Comb busbar is optimised for the SLIM RCBO
- Connectors can accept up to 35 mm² rigid cable
- Available in 5, 12 and 24 module options for single phase installations

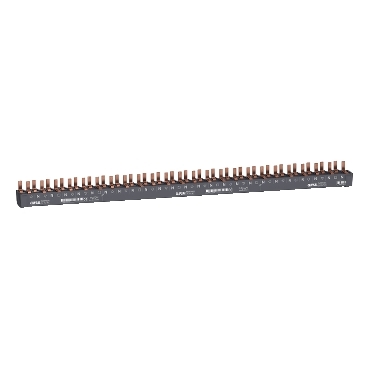

- Also available for 3 phase installations in 12 and 24 module options
Specifications
Design
Product brand
Range
Product or component type
Physical
Device presentation
[ie] rated operational current
[ue] rated operational voltage
- 230 V AC Ph/N
- 400 V AC Ph/Ph
Mounting mode
Width
Standards
- IEC 61439-1
- IEC 60947-7-1
Reach free of svhc
Toxic heavy metal free
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
Others
Package 2 bare product quantity
Average percentage of recycled plastic content
Package 1 bare product quantity
Legacy weee scope
Weee label
Weee applicability
Weee exclusion rationale
Accessory / separate part category
Poles description
Number of ways
Distance between way
Total number of 18 mm modules
Insulation
[ui] rated insulation voltage
[uimp] rated impulse withstand voltage
Mounting location
9 mm pitches
Fire resistance
Pollution degree
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
End of life manual availability
Take-back
Warranty (in months)
