Clipsal Resi MAX Meter Box Victoria 21 Modules With Service Fuse Lock

Clipsal Resi MAX Meter Box Victoria 21 Modules With Service Fuse Lock

Item Number: 230DRAVL

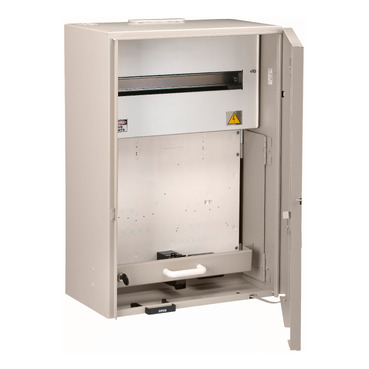

This Resi MAX product is a surface or semi flush mounted meter box with a plain door. It is a ventilated door with door retainer. It contains 21 modules of 18mm. The dimensions are (W) 470mm x (H) 680mm x (D) 280mm.

Datasheet

Product Dimensions

Width icon

Width470 mm

Height icon

Height680 mm

Depth icon

Depth280 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Resi MAX

Product or component type

meter box

Device application

  • distribution
  • metering

Physical

Provided equipment

  • fuse links
  • neutral link
  • removable meter panel
  • enclosure
  • DIN rail
  • fascia plate

Function available

  • fuse protection lock
  • cable protection slide

Cable entry

  • knock-out top and bottom
  • knock-out rear

Width

470 mm

Height

680 mm

Depth

280 mm

Ip degree of protection

IP23

Standards

AS/NZS 3000

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2410044EN

Circularity profile

N/A

Material

Material

iron (galvanised)

Others

Packaging without single use plastic

Yes

Packaging made with recycled cardboard

Yes

Package 1 bare product quantity

1

Enclosure/cubicle description

plain door enclosure

Targeted country

Australia

Targeted region

Victoria

Enclosure mounting

  • surface
  • semi flush

Number of modules

21

Protection device type

miniature circuit breaker (MCB) - 63 A - 1P - 6 kA

Door type

ventilated removable door with door retainer

Door opening side

right

Lock type

padlockable

Protective treatment

epoxy powder coat

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

69.5 cm

Package 1 width

29.5 cm

Package 1 length

48.5 cm

Package 1 weight

18000 g

Unit type of package 2

PAL

Number of units in package 2

24

Package 2 height

14.5 cm

Package 2 width

110 cm

Package 2 length

110 cm

Package 2 weight

456000 g

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

249.08576959450045

Global warming ; total life cycle​

249 kg CO2 eq.

Minimum percentage of recycled plastic content

0
