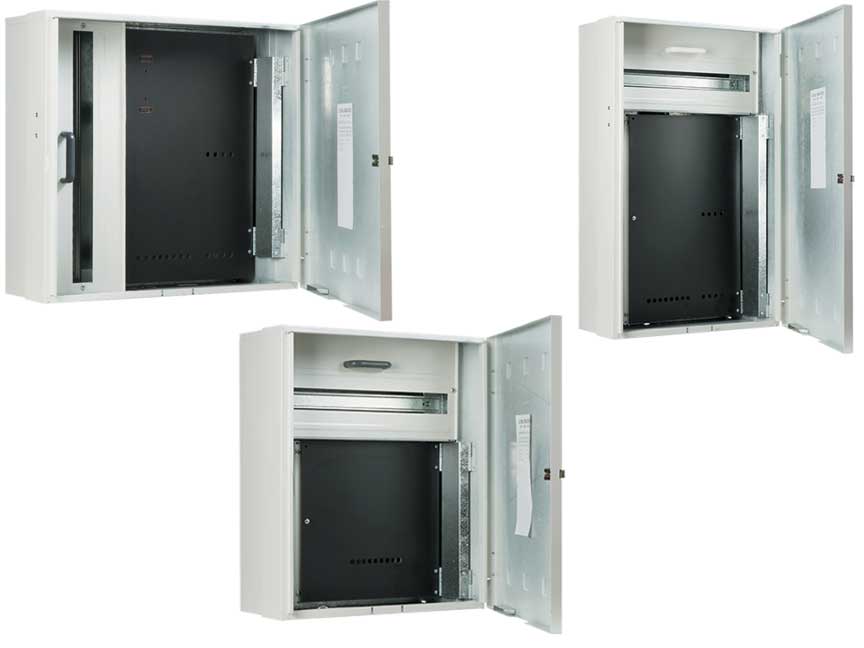

Clipsal Resi MAX Meter Box South Australia 30 Modules For multiple meters

Clipsal Resi MAX Meter Box South Australia 30 Modules For multiple meters

Item Number: 230DRAS3

Datasheet

Product Dimensions

Width icon

Width610 mm

Height icon

Height600 mm

Depth icon

Depth256 mm

Barcode

Qty UoM EAN Colour
-
-
-
Resi MAX South Australia Meter Boxes

Features

  • Suitable for multiple meters
  • 30 module wide
  • Ingress Protection rating of IP23
  • Lockable & removable door
  • Provided with earth and neutral grid
  • Powder coated
  • Suitable to comply with South Australian service and installation rules

Specifications

Design

Range

Resi MAX

Product or component type

meter box

Device application

metering|distribution

Physical

Provided equipment

enclosure|DIN rail|earth and neutral grid assembly|fascia plate|removable meter panel

Function available

clips lead retainer

Cable entry

knock-out top and bottom

Width

610 mm

Height

600 mm

Depth

256 mm

Ip degree of protection

IP23

Standards

AS/NZS 3000

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Circularity profile

N/A

Material

Material

iron (galvanised)

Others

Package 1 bare product quantity

1

Enclosure/cubicle description

plain door enclosure

Targeted country

Australia

Targeted region

South Australia

Enclosure mounting

semi flush|surface

Number of modules

30

Protection device type

miniature circuit breaker (MCB) - 63 A - 1P - 6 kA

Door type

ventilated removable door with door retainer

Door opening side

right

Lock type

padlockable

Protective treatment

epoxy powder coat

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

60.0 cm

Package 1 width

61.0 cm

Package 1 length

25.6 cm

Package 1 weight

17.32 kg

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
Resi MAX range

Circuit Protection for Australian Homes

Resi MAX is a very simple range to cover essential circuit protection needs for Australian homes. Resi MAX range helps to provide optimised solution for single phase applications with carefully chosen range of plastic enclosures, surge protection, miniature circuit breakers, isolator switch, RCDs and RCBOs.

Slim Comb busbars and accessories are also available to simplify the installation with SLIM RCBOs and help to improve installation speed by up to 10 times. Plastic enclosures in this range are optimised to provide the best balance of aesthetics, wiring space and value for money.

Products in this range are must haves for each electrician’s van as it helps to optimise installation costs without compromising on quality or performance. All Resi MAX devices provide full flexibility to the installer with the option of feeding them either from top or bottom side. All products comply to relevant Australian standards for complete peace of mind.
