Clipsal Resi MAX Meter Box South Australia 24 Modules With meter isolator MCB 63 A 1P 6 kA

Clipsal Resi MAX Meter Box South Australia 24 Modules With meter isolator MCB 63 A 1P 6 kA

Item Number: 230DRAS1MI

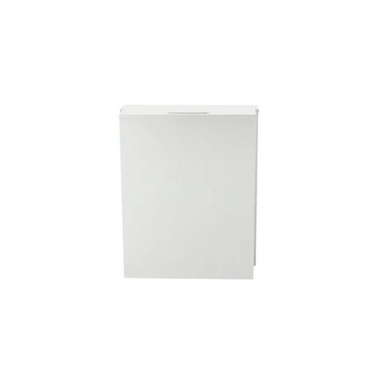

This Resi MAX product is a surface or semi flush mounted meter box with a plain door. It is a ventilated door with door retainer. It contains 24 modules of 18mm. The dimensions are (W) 500mm x (H) 680mm x (D) 256mm.

Datasheet

Product Dimensions

Width icon

Width500 mm

Height icon

Height600 mm

Depth icon

Depth256 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range Resi MAX
Product or component type meter box
Device application
  • metering
  • distribution

Physical

Provided equipment
  • enclosure
  • DIN rail
  • earth and neutral grid assembly
  • removable meter panel
  • meter isolator
  • fascia plate
Function available clips lead retainer
Cable entry knock-out top and bottom
Width 500 mm
Height 600 mm
Depth 256 mm
Ip degree of protection IP23
Standards AS/NZS 3000
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP2410044EN
Reach regulation Reference contains Substances of Very High Concern above the threshold
China rohs regulation Product out of China RoHS scope
Eu rohs directive Compliant By Exemption
California proposition 65 WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material iron (galvanised)

Others

Legacy weee scope In
Package 1 bare product quantity 1
Average percentage of recycled plastic content 0 %
Outside of Europe
Weee label N/A
Weee applicability Component
Weee exclusion rationale Component not in scope – non independent function
Warranty duration(in months) bmecat 18
Enclosure/cubicle description plain door enclosure
Targeted country Australia
Targeted region South Australia
Enclosure mounting
  • surface
  • semi flush
Number of modules 24
Protection device type miniature circuit breaker (MCB) - 63 A - 1P - 6 kA
Door type ventilated removable door with door retainer
Door opening side right
Lock type padlockable
Protective treatment epoxy powder coat
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 60.0 cm
Package 1 width 50.0 cm
Package 1 length 25.6 cm
Package 1 weight 16.3 kg
Green premium status for reporting Green Premium product
Total lifecycle carbon footprint 208 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3] 98.77611140205227
Carbon footprint of the manufacturing phase [a1 to a3] 99 kg CO2 eq.
Carbon footprint of the distribution phase [a4] 7.250313240823885
Carbon footprint of the distribution phase [a4] 7 kg CO2 eq.
Carbon footprint of the installation phase [a5] 0.0409353563278405
Carbon footprint of the installation phase [a5] 0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6] 60.5121561762041
Carbon footprint of the use phase [b2, b3, b4, b6] 61 kg CO2 eq.
Sustainable packaging Yes
Carbon footprint of the end-of-life phase [c1 to c4] 41.63063994717434
Carbon footprint of the end-of-life phase [c1 to c4] 42 kg CO2 eq.
Pvc free No
Halogen-free status Halogen free product
Silicone-free  No
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Total lifecycle carbon footprint 208.21015612258242
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard Yes
Packaging without single use plastic Yes
Halogen-free status Halogen free product
Pvc free No
Silicone-free No
End of life manual availability N/A
Take-back No
Warranty (in months) 18
