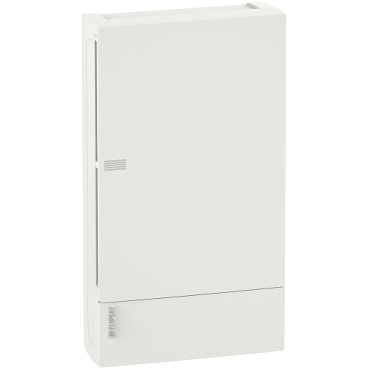

Clipsal Resi MAX Consumer switchboard 3 row 36 modules Surface Mounted

Item Number: RMXE312S

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width268 mm external

Height478 mm external

Depth102 mm external

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606481334268	-

Specifications

Design

Range	Resi MAX
Product brand	Clipsal
Product or component type	enclosure
Device application	distribution
Colour	white (RAL 9003)

Physical

Provided equipment	DIN rail earth terminal block neutral terminal block
[in] rated current	63 A
Cable entry	knock-out top and bottom knock-out rear
Width	268 mm external
Height	478 mm external
Depth	102 mm external
Ip degree of protection	IP40
Ik degree of protection	IK07
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206023EN
Eu rohs directive	Compliant

Others

Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Package 1 bare product quantity	1
Legacy weee scope	Out
	Outside of Europe
Enclosure type	mini enclosure for modular device
Number of 18 mm modules per row	12
Type of front cover	plain
Door type	plain door
Enclosure mounting	surface
Total number of 18 mm modules	36
Number of horizontal rows	3
Number of ways	36 ways
Type of rail	35 mm asymmetrical rail
Number of terminal blocks	30 earth (screw connection) 33 neutral (screw connection)
Enclosure material	technoplastic
Fire resistance	650 °C
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.0 cm
Package 1 width	27.0 cm
Package 1 length	49.0 cm
Package 1 weight	1.8 kg
Unit type of package 2	PAL
Number of units in package 2	52
Package 2 height	115.0 cm
Package 2 width	80.0 cm
Package 2 length	120.0 cm
Package 2 weight	105.6 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Pvc free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
