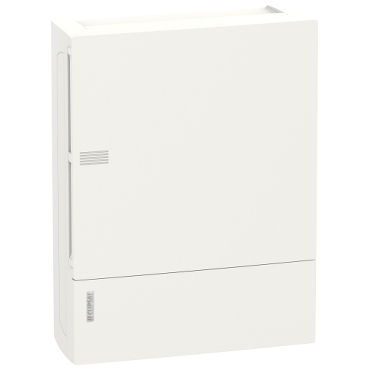

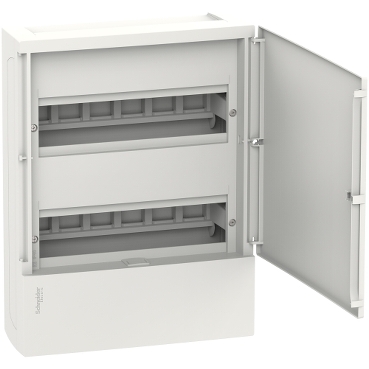

Clipsal Resi MAX Consumer switchboard 2 row 24 modules Surface Mounted

Item Number: RMXE212S

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width268 mm external

Height353 mm external

Depth102 mm external

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606481334251	-

Specifications

Design

Range	Resi MAX
Product brand	Clipsal
Product or component type	enclosure
Device application	distribution
Colour	white (RAL 9003)

Physical

Provided equipment	DIN rail earth terminal block neutral terminal block
[in] rated current	63 A
Cable entry	knock-out top and bottom knock-out rear
Width	268 mm external
Height	353 mm external
Depth	102 mm external
Ip degree of protection	IP40
Ik degree of protection	IK07
Reach free of svhc	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206023EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	Out
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Package 1 bare product quantity	1
Weee exclusion rationale	Component not in scope – non independent function
Weee applicability	Component
Weee label	N/A
Warranty duration(in months) bmecat	18
Enclosure type	mini enclosure for modular device
Number of 18 mm modules per row	12
Type of front cover	plain
Door type	plain door
Enclosure mounting	surface
Total number of 18 mm modules	24
Number of horizontal rows	2
Number of ways	24 ways
Type of rail	35 mm asymmetrical rail
Number of terminal blocks	30 earth (screw connection) 27 neutral (screw connection)
Enclosure material	technoplastic
Fire resistance	650 °C
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.8 cm
Package 1 width	28.0 cm
Package 1 length	36.6 cm
Package 1 weight	1.76 kg
Unit type of package 2	PAL
Number of units in package 2	72
Package 2 height	115.0 cm
Package 2 width	80.0 cm
Package 2 length	120.0 cm
Package 2 weight	126.72 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	88 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	10.665396077767607
Carbon footprint of the manufacturing phase [a1 to a3]	11 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.7828559082116587
Carbon footprint of the distribution phase [a4]	0.8 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.004420013934785232
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	72.39184327828096
Carbon footprint of the use phase [b2, b3, b4, b6]	72 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	4.495087503498579
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Pvc free	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	88.33960278169359
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
