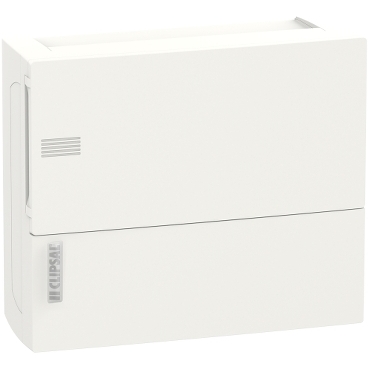

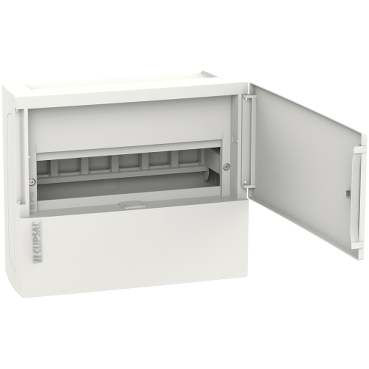

Clipsal Resi MAX Consumer switchboard 1 row 18 modules Surface Mounted

Item Number: RMXE118S

1 PCE 0

This Resi MAX product is a mini enclosure for modular device. It is surface mounted. It is composed of 1 row of 18 modules of 18m. The In rated current is 63A.

Where To Buy

Datasheet

Download

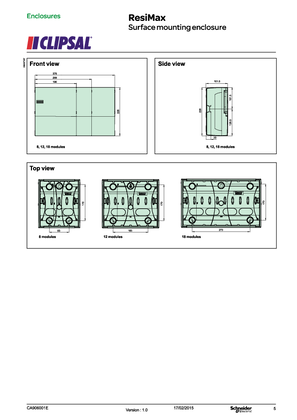

Product Dimensions

Width376 mm external

Height228 mm external

Depth101.5 mm external

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606485410692	-

Specifications

Design

Range	Resi MAX
Product brand	Clipsal
Product or component type	enclosure
Device application	distribution
Colour	white (RAL 9003)

Physical

Provided equipment	DIN rail earth terminal block neutral terminal block
[in] rated current	63 A
Cable entry	knock-out top and bottom knock-out rear
Width	376 mm external
Height	228 mm external
Depth	101.5 mm external
Ip degree of protection	IP40
Ik degree of protection	IK07
Reach free of svhc	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206023EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	Out
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Enclosure type	mini enclosure for modular device
Number of 18 mm modules per row	18
Type of front cover	plain
Door type	plain door
Enclosure mounting	surface
Total number of 18 mm modules	18
Number of horizontal rows	1
Number of ways	18 ways
Type of rail	35 mm asymmetrical rail
Number of terminal blocks	18 earth (screw connection) 22 neutral (screw connection)
Enclosure material	technoplastic
Fire resistance	650 °C
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.2 cm
Package 1 width	39.0 cm
Package 1 length	25.0 cm
Package 1 weight	1.25 kg
Unit type of package 2	P12
Number of units in package 2	72
Package 2 height	80.0 cm
Package 2 width	80.0 cm
Package 2 length	120.0 cm
Package 2 weight	102.0 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	84 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.574855168869038
Carbon footprint of the manufacturing phase [a1 to a3]	8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.5560056166275984
Carbon footprint of the distribution phase [a4]	0.6 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0031392144423190564
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	72.39184327828096
Carbon footprint of the use phase [b2, b3, b4, b6]	72 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	3.19253373828024
Carbon footprint of the end-of-life phase [c1 to c4]	3 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	83.71837701650016
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
