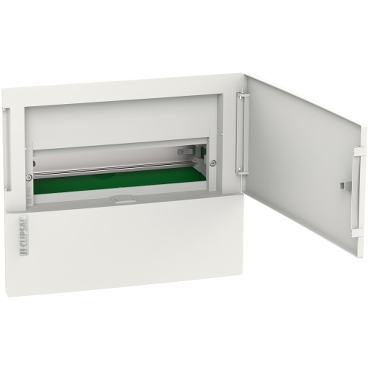

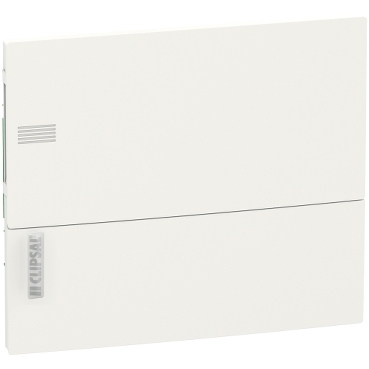

Clipsal Resi MAX Consumer switchboard 1 row 18 modules Flush Mounted
Item Number: RMXE118F
Datasheet

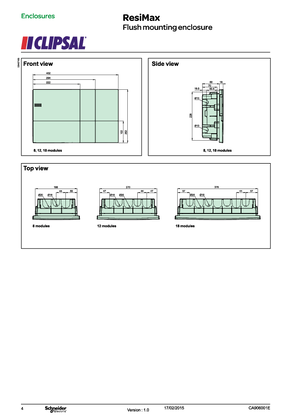

Product Dimensions
Width<ul><li>378 mm external</li><li>402 mm (with door)</li></ul>
Height<ul><li>228 mm external</li><li>252 mm (with door)</li></ul>
Depth<ul><li>80 mm external</li><li>98 mm (with door)</li></ul>
Specifications
Design
Range
Product brand
Product or component type
Device application
Colour
Physical
Provided equipment
- DIN rail
- earth terminal block
- neutral terminal block
[in] rated current
Cable entry
- knock-out top and bottom
- knock-out rear
Width
- 378 mm external
- 402 mm (with door)
Height
- 228 mm external
- 252 mm (with door)
Depth
- 80 mm external
- 98 mm (with door)
Ip degree of protection
Ik degree of protection
Reach regulation
Reach free of svhc
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Others
Package 1 bare product quantity
Enclosure type
Number of 18 mm modules per row
Type of front cover
Door type
Enclosure mounting
Total number of 18 mm modules
Number of horizontal rows
Number of ways
Type of rail
Number of terminal blocks
- 18 earth (screw connection)
- 22 neutral (screw connection)
Enclosure material
Fire resistance
- door: 650 °C
- back box: 850 °C
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
