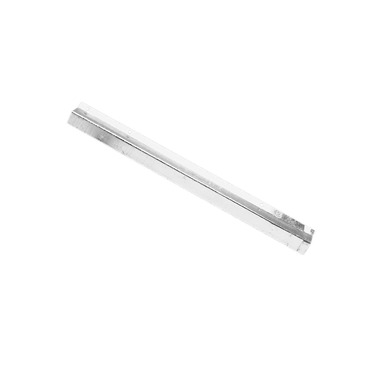

Clipsal Resi MAX Cable and Conduit protection cover H50 x W50 x D900mm pole mount
Item Number: PM50
Datasheet
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Product or component type | cover |
Physical
| Mounting support | pole |
|---|---|
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2307028EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Documents & downloads
-
All
-
Environmental Disclosure
-
Specification Guide
-
Declaration of Conformity (Sustainability)
Frequently Asked Questions
What is the correct register to read Digital Input status for PM5560?
Hide Show
Product Line: Power Meters PM5000 series
Environment: METSEPM5560, METSEPM5561, METSEPM5563, METSEPM5580, METSEPM5650
Resolution:
For PM5560, the digital input status can be read in two ways:
1. Register read
- Register 2401
- Bit 0 = DI1
- Bit 1 = DI2
- Bit 2 = DI3
- Bit 3 = DI4
2. Coil read:
- Coil 38416 = DI1
- Coil 38417 = DI2
- Coil 38418 = DI3
- Coil 38419 = DI4
So, to read the current status of the digital inputs:
- use register 2401 to read all four DI statuses in one value
- use coils 38416 to 38419 to read each DI individually
- The data type for register 2401 is BITMAP & it’s a 16bit register
Video: How to enable or disable an ION Meter Web Page?
Hide ShowIssue
When trying to connect to an ION meter through a web browser, an error " Page can not be displayed" or "This site can't be reached", depending on which web browser, is displayed.
Product Line
ION 8650, 8600, 7650, 7550, 7600, 7500
PM8000
Environment
ION Meter Web Page
Cause
The ION Meter Web Page has been disabled.
Resolution
Enable the ION Meters Web Page functionality.
Note: For PM8000 meters, ION Setup V3.0.15140.02 or later must be used. The latest version of ION Setup can be obtained from FA212816.
1. Connect to the meter in Advanced Mode using ION Setup.
2. Select the Comm Modules folder and then the Ethernet module.
3. Under the Setup Registers Tab, select ETH1 Enable Webserver and change the value to 'Yes' to enable the Web server, or 'No' to disable it. (Refer to the screen shot below)
NOTE: the ETH1 Webserver Config Access will enable or disable the ability to make configuration changes from the ION Meter Web Page.
Note: For instructions on connecting to an ION Meter in Advanced Mode, please refer to ION Setup 3.0 User Guide. Latest ION Setup User Guide can be obtained by visiting following link:
https://www.schneider-electric.com/en/product-range-download/61461-ion-setup-3.0
Please note that if the device is communicating over a managed switch, you may need to use the IP address signed by the switch when trying to browse the meter webpage.
