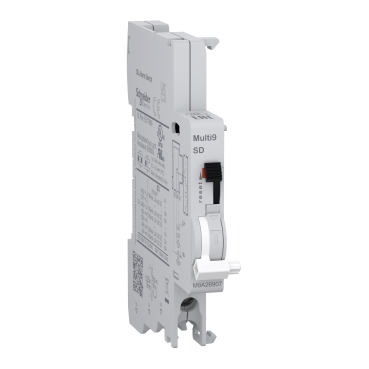

Auxiliary contact, Multi9 M9A, SD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection - Image

Home ProductsCircuit ProtectionMulti9Auxiliary contact

Multi9 Auxiliary contact SD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection

Item Number: M9A26907

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width9 mm

Height85 mm

Depth68 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606486351819	-

Specifications

Design

Range	Multi9
Product or component type	fault contact
Product compatibility	single terminal
Market segment	industry\|OEM
Sustainable offer status	Green Premium product

Physical

[in] rated current	0.1...6 A at 24...240 V, AC 50/60 Hz\| 0.1...6 A at 24...250 V, AC 50/60 Hz\| 0.1...6 A at 24 V, DC\| 0.1...2 A at 48 V, DC\| 0.1.5 A at 60 V, DC\| 0.1 A at 110 V, DC\| 0.1 A at 130 V, DC\| 0.1...3 A at 277 V, AC 50/60 Hz\| 0.1...3 A at 415 V, AC 50/60 Hz
Range compatibility	Multi 9 Multi9 C60BP\|Multi 9 Multi9 C60SP\|Multi 9 Multi9 C60\|Multi 9 Multi9 N40
Local signalling	mechanical indicator
Mounting mode	clip-on
Mounting support	DIN rail
Height	85 mm
Width	9 mm
Depth	68 mm
Net weight	30 g
Connections - terminals	screw clamp terminal (bottom) 1 cable(s) 2.5-2.5 mm² - rigid\|screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - rigid
Wire stripping length	9 mm
Standards	EN/IEC 60947-5-1\|GB/T 14048.5\|EN 62019-2\|UL 1077\|UL 489\|C22.2 No. 5\|C22.2 No. 235
Product certifications	CE\|UKCA\|UL
Ip degree of protection	IP20
Ambient air temperature for operation	-25...70 °C
Ambient air temperature for storage	-40...85 °C
Reach regulation	Free of Substances of Very High Concern above the threshold
Reach free of svhc	Yes
Eu rohs directive	Compliant
Mercury free	Yes
Rohs exemption information	Yes
China rohs regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)

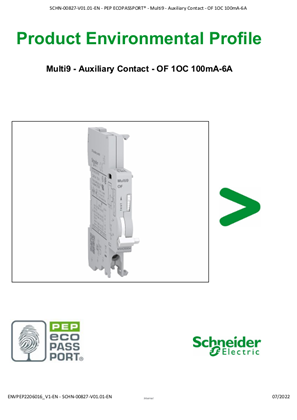

Environmental disclosure	ENVPEP2206016EN

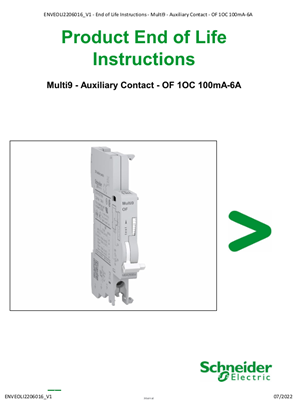

Circularity profile	ENVEOLI2206016

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	12
Package 3 bare product quantity	108
Device short name	SD
Signal contacts composition	1 C/O
9 mm pitches	1
[ui] rated insulation voltage	500 V
[uimp] rated impulse withstand voltage	4 kV
Mounting location	left side of circuit-breaker
Comb busbar and distribution block compatibility	top: YES
Tightening torque	1 N.m bottom
Compatibility code	SD
Quality labels	EAC\|CCC
Pollution degree	3
Tropicalisation	2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.000 cm
Package 1 width	7.800 cm
Package 1 length	9.400 cm
Package 1 weight	38.000 g
Unit type of package 2	BB1
Number of units in package 2	12
Package 2 height	8.500 cm
Package 2 width	10.000 cm
Package 2 length	26.400 cm
Package 2 weight	519.000 g
Unit type of package 3	S03
Number of units in package 3	108
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	5.152 kg
