MAX9 Switchboard Enclosure Weather Proof, 3 Row, 36 Ways, Surface Mounted

Home ProductsCircuit ProtectionMax9Switchboard Enclosure

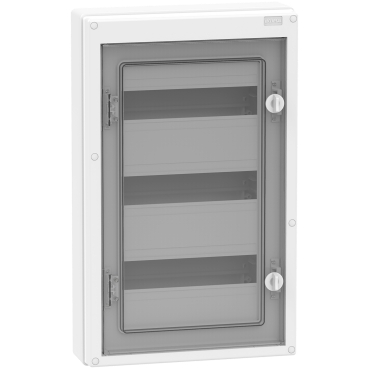

MAX9 Switchboard Enclosure Weather Proof, 3 Row, 36 Ways, Surface Mounted

Item Number: MX9EW312S

Datasheet

Product Dimensions

Width icon

Width346 mm

Height icon

Height560 mm

Depth icon

Depth110 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX9

Product brand

Clipsal

Product or component type

enclosure

Device application

distribution

Colour

white electric (RAL 9003)

Market segment

residential

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

Provided equipment

earthing bar|neutral bar|circuit identification label|blanking plate

[ue] rated operational voltage

240/415 V AC

[in] rated current

100 A

Cable entry

knock-out cable entries

Width

346 mm

Height

560 mm

Depth

110 mm

Standards

AS/NZS 61439-3|AS/NZS 3000

Ip degree of protection

IP56

Ik degree of protection

IK07

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2206023EN

Circularity profile

N/A

Others

Commercial status history

SESA301466 | Tue Sep 10 19:58:00 EDT 2024 | From Unitary Local | From 14 to 18

Package 1 bare product quantity

1

Number of 18 mm modules per row

12

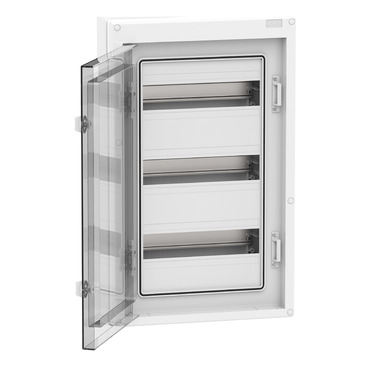

Door type

tinted transparent door - reversible

Enclosure mounting

surface

Total number of 18 mm modules

36

Number of horizontal rows

3

[ui] rated insulation voltage

500 V

Number of ways

36 ways

Type of rail

DIN

Enclosure material

housing: plastic

Fire resistance

650 °C

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

56.0 cm

Package 1 width

12.8 cm

Package 1 length

34.5 cm

Package 1 weight

5.312 kg

Unit type of package 2

CAR

Number of units in package 2

2

Package 2 height

34.5 cm

Package 2 width

26.0 cm

Package 2 length

57.5 cm

Package 2 weight

11.318 kg
