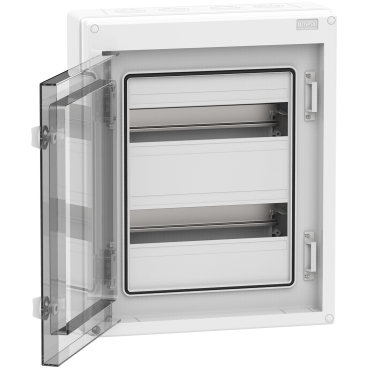

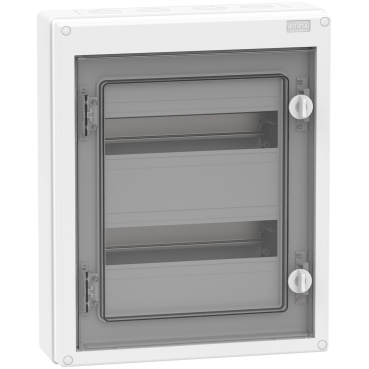

MAX9 Switchboard Enclosure Weather Proof, 2 Row, 24 Ways, Surface Mounted

Home ProductsCircuit ProtectionMax9Switchboard Enclosure

MAX9 Switchboard Enclosure Weather Proof, 2 Row, 24 Ways, Surface Mounted

Item Number: MX9EW212S

Datasheet

Product Dimensions

Width icon

Width346 mm

Height icon

Height426 mm

Depth icon

Depth110 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX9

Product brand

Clipsal

Product or component type

enclosure

Device application

distribution

Colour

white electric (RAL 9003)

Market segment

residential

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

Provided equipment

earthing bar|neutral bar|circuit identification label|blanking plate

[ue] rated operational voltage

240/415 V AC

[in] rated current

100 A

Cable entry

knock-out cable entries

Width

346 mm

Height

426 mm

Depth

110 mm

Standards

AS/NZS 61439-3|AS/NZS 3000

Ip degree of protection

IP56

Ik degree of protection

IK07

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2206023EN

Circularity profile

N/A

Others

Commercial status history

SESA301466 | Fri Aug 16 21:01:00 EDT 2024 | From Import Local | From 08 to 08

Package 1 bare product quantity

1

Number of 18 mm modules per row

12

Door type

tinted transparent door - reversible

Enclosure mounting

surface

Total number of 18 mm modules

24

Number of horizontal rows

2

[ui] rated insulation voltage

500 V

Number of ways

24 ways

Type of rail

DIN

Enclosure material

housing: plastic

Fire resistance

650 °C

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

35.0 cm

Package 1 width

13.0 cm

Package 1 length

43.0 cm

Package 1 weight

4.21 kg

Unit type of package 2

CAR

Number of units in package 2

3

Package 2 height

42.3 cm

Package 2 width

34.5 cm

Package 2 length

45.2 cm

Package 2 weight

13.701 kg
