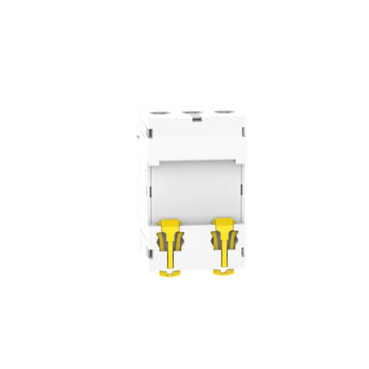

MAX9 Surge Protection Device SPD, 3P, 40kA

Home ProductsCircuit ProtectionMax9Surge Protection Device

MAX9 Surge Protection Device SPD, 3P, 40kA

Item Number: MX9SP340

Product Selector ➚

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width54 mm

Height icon

Height85 mm

Depth icon

Depth64 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

MAX9

Range

MAX9

Product or component type

surge arrester

Device application

distribution

Warranty

7-year

Physical

Local signalling

flag

[ue] rated operational voltage

240/415 V +/- 6 % AC 50/60 Hz

Local signalling

white/red flag

Local signalling

flag (white/red)

Mounting mode

clip-on

Mounting support

DIN rail

Height

85 mm

Width

54 mm

Depth

64 mm

Net weight

340 g

Connections - terminals

  • tunnel type terminal (top or bottom) 2.5-25 mm² rigid
  • tunnel type terminal (top or bottom) 4-16 mm² flexible

Wire stripping length

14 mm

Standards

  • IEC 61643-11:2011
  • EN 61643-11:2012

Ip degree of protection

IP20

Ik degree of protection

IK03 conforming to IEC 62262

Relative humidity

5...95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

4

Poles description

3P

Remote signalling

with

Signal contacts composition

1 NO + 1 NC

Surge arrester type

electrical distribution network

Earthing system

  • TN-C
  • TN-S
  • TT

Surge arrester class type

type 2

Surge arrester technology

MOV

Nominal discharge current

15 kA conforming to IEC 61643-11

Maximum discharge current

40 kA conforming to IEC 61643-11

[uc] maximum continuous operating voltage

350 V AC

Maximum [up] voltage protection level

<1.6 kV type 2

[ures] residual voltage

1545 V

[ut] temporary overvoltage

336 V L/PE 5 s withstand

Signalling circuit voltage

AC: 250 V 50/60 Hz

Signalling output current

0.25 A

Comb busbar and distribution block compatibility

tooth

9 mm pitches

6

Cable cross section

  • 2.5...25 mm² rigid
  • 4...16 mm² flexible

Response time

<= 25 ns

Maximum residual current

0.6 mA 240/415 V

Tightening torque

3.5...3.5 N.m

Targeted country

Australia

Quality labels

RCM

Pollution degree

2

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.4 cm

Package 1 width

9.4 cm

Package 1 length

6.4 cm

Package 1 weight

356 g

Unit type of package 2

BB1

Number of units in package 2

4

Package 2 height

8.2 cm

Package 2 width

27.5 cm

Package 2 length

9.6 cm

Package 2 weight

1.424 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

a9614fa2-07f8-47d1-a2fe-e27b32003d8d

Optimized energy efficiency

False

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
