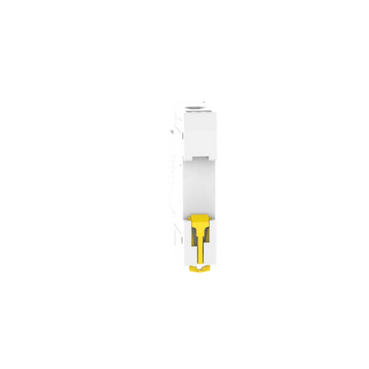

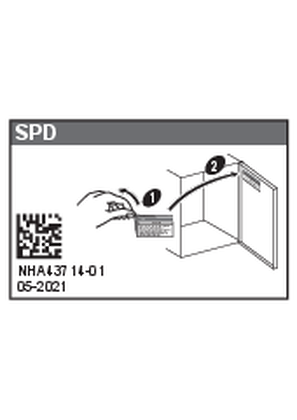

MAX9 Surge Protection Device SPD, 1P, 40kA

Home ProductsCircuit ProtectionMax9Surge Protection Device

MAX9 Surge Protection Device SPD, 1P, 40kA

Item Number: MX9SP140

Product Selector ➚

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height85 mm

Depth icon

Depth64 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

MAX9

Range

MAX9

Product or component type

surge arrester

Device application

distribution

Warranty

7-year

Physical

Local signalling

flag

[ue] rated operational voltage

240 V +/- 6 % AC 50/60 Hz

Local signalling

white/red flag

Local signalling

flag (white/red)

Mounting mode

clip-on

Mounting support

DIN rail

Height

85 mm

Width

18 mm

Depth

64 mm

Net weight

119 g

Connections - terminals

  • tunnel type terminal (top or bottom) 2.5-25 mm² rigid
  • tunnel type terminal (top or bottom) 4-16 mm² flexible

Wire stripping length

14 mm

Standards

  • IEC 61643-11:2011
  • EN 61643-11:2012

Ip degree of protection

IP20

Ik degree of protection

IK03 conforming to IEC 62262

Relative humidity

5...95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

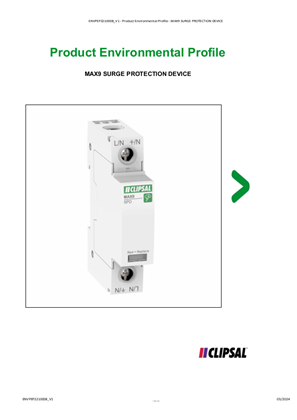

Environmental disclosure

ENVPEP2210008EN

Circularity profile

N/A

Others

Package 2 bare product quantity

12

Package 1 bare product quantity

1

Poles description

1P

Remote signalling

with

Signal contacts composition

1 NO + 1 NC

Surge arrester type

electrical distribution network

Earthing system

  • TN-C
  • TN-S
  • TT

Surge arrester class type

type 2

Surge arrester technology

MOV

Nominal discharge current

15 kA conforming to IEC 61643-11

Maximum discharge current

40 kA conforming to IEC 61643-11

[uc] maximum continuous operating voltage

350 V AC

Maximum [up] voltage protection level

<1.6 kV type 2

[ures] residual voltage

1545 V

[ut] temporary overvoltage

336 V L/PE 5 s withstand

Signalling circuit voltage

AC: 250 V 50/60 Hz

Signalling output current

0.25 A

Comb busbar and distribution block compatibility

tooth

9 mm pitches

2

Cable cross section

  • 2.5...25 mm² rigid
  • 4...16 mm² flexible

Response time

<= 25 ns

Maximum residual current

0.6 mA 240 V

Tightening torque

3.5...3.5 N.m

Targeted country

Australia

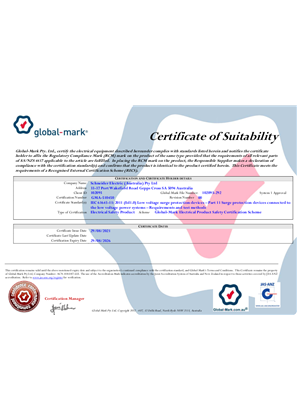

Quality labels

RCM

Pollution degree

2

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

2.5 cm

Package 1 length

9.5 cm

Package 1 weight

132 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.2 cm

Package 2 width

27.5 cm

Package 2 length

9.6 cm

Package 2 weight

1.584 kg

Scip number

a9614fa2-07f8-47d1-a2fe-e27b32003d8d

Packaging without single use plastic

No

Packaging made with recycled cardboard

No

Optimized energy efficiency

False

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
