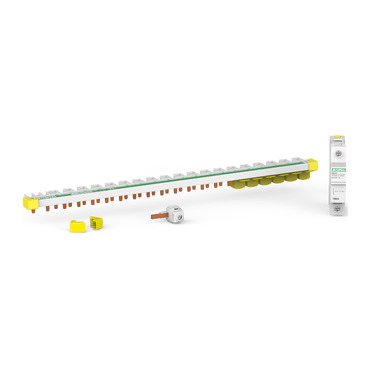

MAX9 MAXBAR Top Feed 1P+N, 21 Modules, 100 A with N Block and Accessories
Item Number: MX9B121N
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | MAX9 |
| Product or component type | comb busbar |
| Market segment | residential |
| Warranty | 7-year |
Physical
| Device presentation | cuttable |
|---|---|
| Provided equipment |
|
| [ie] rated operational current | 100 A |
| [ue] rated operational voltage | 230 V AC |
| Mounting mode | horizontal |
| Height | 23 mm |
| Width | 382 mm |
| Depth | 35 mm |
| Standards |
|
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2206007EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
Environmental Disclosure
-
Declaration of Conformity (Sustainability)
Frequently Asked Questions
Will the Resimax endcaps suit the Maxbar?
Hide Show
No they do not, our longer lengths of Maxbar come with extra end caps
MX9B121N, MX9B321N and MX9B315 all come with 2 spare end caps.
MX9B121N, MX9B321N and MX9B315 all come with 2 spare end caps.
How do you distribute MAXBAR from the main row to other rows, keeping the system more professional?
Hide Show
MAXBAR with neutral terminal block can be used to distribute active and neutral in the row with main switch. Use the connectors provided with MAXBAR to take active and neutral feed from the row with main switch to take the feed to other rows. You can follow the same process for other rows in switchboard.
What is MAXBAR?
Hide Show
MAXBAR is a top feeding comb busbar able to feed Line & Neutral from the Main incoming Switch or MCB and neutral terminal directly to all type of Clipsal RCBOs and AFDDs.
There are Comb busbar for 1P+N and 3P+N applications. There is one variant with neutral terminal block for rows with Main Switch and another variant for rows without Main switch.
There are Comb busbar for 1P+N and 3P+N applications. There is one variant with neutral terminal block for rows with Main Switch and another variant for rows without Main switch.
How can MAXBAR help me to save time during switchboard installation ?
Hide Show
MAXBAR removes the need for cutting stripping, twisting and managing cables for feeding RCBO & AFDD on typical installation. This helps to achieve installation speed of up to 15x faster with MAXBAR compared to traditional wiring.
