Specifications
Design

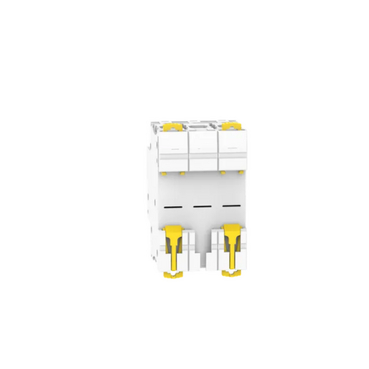

| Range | MAX9 |
|---|---|
| Product or component type | switch disconnector |
| Device application | switch |
| Market segment | residential |
| Warranty | 7-year |
Physical
| [ie] rated operational current | AC-22A: 100 A at 415 V AC 50/60 Hz |
|---|---|
| [ue] rated operational voltage | 415 V AC 50/60 Hz |
| Control type | toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | clip-on |
| Mounting support | DIN rail |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 75 mm |
| Net weight | 243 g |
| Mechanical durability | 20000 cycles |
| Electrical durability | AC-22A: 10000 cycles 415 V AC 50/60 Hz |
| Connections - terminals |
|
| Wire stripping length | 14 mm |
| Standards | IEC 60947-3 |
| Ip degree of protection | IP20 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |

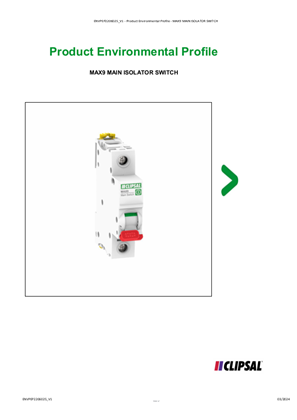

| Environmental disclosure | ENVPEP2206025EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
