MAX9 Isolator Switch 1P, 100A, 240V

Home ProductsCircuit ProtectionMax9Isolator Switch

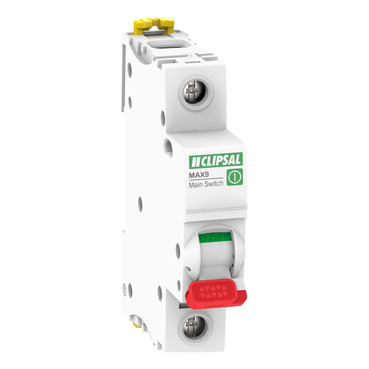

MAX9 Isolator Switch 1P, 100A, 240V

Item Number: MX9MS1100

Product Selector ➚

Where To Buy

Datasheet

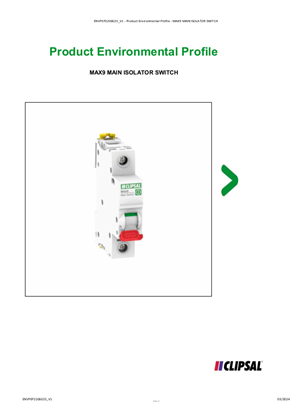

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height85 mm

Depth icon

Depth75 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
max9 main switch
max9 main switch
max9 main switch
max9 main switch
max9 main switch
max9 main switch

Fast installation speed with unmatched flexibility

  • Compatible with MAXBAR
  • Big terminal capacity with up to 35 mm2 flexible cable
  • Installation flexibility with the choice of line connection either from top or bottom
  • Compatible with multiple types of screw-drivers with combination head screws
  • Double locking clip for ease of installation or removal from busbar
  • Ease of selection with optimised offer

Helps to provide additional safety

  • Positive contact Indicator on toggle that indicates opening of all poles
  • ON/OFF locking with trip free mechanism
  • Cable automatically guided to the correct position: terminals with guard

Peace of mind with complete solution

  • Complete solution with 1P/2P/3P variants
  • Red colour toggle handle for easy identification in case of emergency
  • Designed for touch Aussie conditions with operating temperature range of -25 Deg C to +70 Deg C (derating applies)
  • Designed to last with endurance performance of 10K electrical cycles and 20K mechanical cycles
  • Through hole for sealing by wire as well as compatible with A9A26970 padlocking device
  • Ability to withstand harsher environment with Pollution degree 3

Specifications

Design

Range

MAX9

Product or component type

switch disconnector

Device application

switch

Market segment

residential

Warranty

7-year

Physical

[ie] rated operational current

AC-22A: 100 A at 240 V AC 50/60 Hz

[ue] rated operational voltage

240 V AC 50/60 Hz

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Height

85 mm

Width

18 mm

Depth

75 mm

Net weight

81 g

Mechanical durability

20000 cycles

Electrical durability

AC-22A: 10000 cycles 240 V AC 50/60 Hz

Connections - terminals

  • tunnel type terminals (top or bottom) - 6...50 mm² - rigid
  • tunnel type terminals (top or bottom) - 6...35 mm² - flexible

Wire stripping length

14 mm

Standards

IEC 60947-3

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2206025_V1

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Average percentage of recycled plastic content

0 %

Outside of Europe

Warranty duration(in months) bmecat

84

Weee label

N/A

Weee applicability

Finished product

Poles description

1P

Utilisation category

AC-22A

Suitability for isolation

yes

Network frequency

50/60 Hz

[icm] rated short-circuit making capacity

5 kA 240 V AC at 50/60 Hz

[icw] rated short-time withstand current

1500 A during 1 s conforming to IEC 60947-3 at 240 V

[ith] conventional free air thermal current

100 A

Maximum power

AC-22A: 4.7 W at 240 V AC 50/60 Hz

[ui] rated insulation voltage

500 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

6 kV

Contact position indicator

yes

Comb busbar and distribution block compatibility

top or bottom: YES

Connection pitch

18 mm

9 mm pitches

2

Tightening torque

3.5 N.m

Quality labels

RCM

Pollution degree

3

Overvoltage category

IV

Tropicalisation

severity B conforming to IEC 60068-2-30

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.5 cm

Package 1 width

7.5 cm

Package 1 length

1.8 cm

Package 1 weight

80 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

9.6 cm

Package 2 width

8.2 cm

Package 2 length

22 cm

Package 2 weight

960 g

Total lifecycle carbon footprint

24 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.0797

Carbon footprint of the manufacturing phase [a1 to a3]

1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.036638

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.078512

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

22.4

Carbon footprint of the use phase [b2, b3, b4, b6]

22 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.21712

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Pvc free

No

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

23.81197

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

0dbcf8b1-4732-4e36-88bc-462a078c2d4c

China rohs label

1

Halogen-free status

Product contains halogen above thresholds

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

84
Show all specifications
max9 busbar
max9 AFDD
max9 distribution board
max9 icons
max9 busbar
max9 AFDD
max9 distribution board
max9 icons

Ultimate Efficiency and Professional Finish

  • MAX9 takes the definition of  a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
  • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal  RCBOs and AFDDs

MAX Innovation & Performance

  • Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
  • Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
  • When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

  • Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
  • MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
  • Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

  • Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
  • MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos
