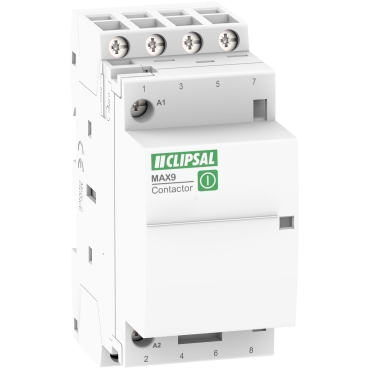

MAX9 Contactor 4 NO, 25A, Ue=415VAC, Uc=240VAC, 2 Modules

Item Number: MX9C122540

1 PCE 0

Product Selector ➚

Where To Buy

Datasheet

Download

Product Dimensions

Width36 mm

Height85 mm

Depth63 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554814359	-

Specifications

Design

Range	MAX9
Product or component type	contactor
Device application	control circuit
Product compatibility	no auxiliary
Market segment	residential

Physical

[ie] rated operational current	25 A AC-7A
Control type	remote control
[ue] rated operational voltage	415 V AC 50 Hz
Mounting mode	clip-on
Mounting support	35 mm symmetrical DIN rail
Height	85 mm
Width	36 mm
Depth	63 mm
Net weight	240 g
Mechanical durability	1000000 cycles
Electrical durability	100000 cycles 240 V 63 A AC 50 Hz
Connections - terminals	power: tunnel type terminal1 cable(s) 1.5-4 mm² flexible power: tunnel type terminal2 cable(s) 1.5-2.5 mm² flexible power: tunnel type terminal1 cable(s) 1.5-6 mm² rigid power: tunnel type terminal2 cable(s) 1.5-2.5 mm² rigid control: tunnel type terminal1 cable(s) 0.5-4 mm² flexible control: tunnel type terminal2 cable(s) 0.5-2.5 mm² flexible control: tunnel type terminal1 cable(s) 0.5-6 mm² rigid control: tunnel type terminal2 cable(s) 0.5-2.5 mm² rigid
Wire stripping length	10 mm
Ip degree of protection	IP20 (modular enclosure) conforming to IEC 60529
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-5...70 °C
Ambient air temperature for storage	-40...70 °C
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

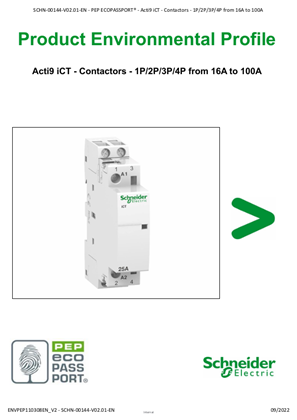

Environmental disclosure	ENVPEP1103008EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Poles description	4P
Pole contact composition	4 NO
Network type	AC
Utilisation category	AC-7A
[uc] control circuit voltage	240 V AC 50 Hz
Network frequency	50 Hz
Maximum power	1.6 W at 415 V AC 50 Hz
[ui] rated insulation voltage	500 V AC 50 Hz conforming to EN 61095
[uimp] rated impulse withstand voltage	2.5 kV
Switching frequency	100 switching operations/day
Hold-in power consumption in va	4.6...4.6 VA
Inrush power in va	34 VA
Comb busbar and distribution block compatibility	NO
9 mm pitches	4
Total power losses	4.2 W
Power losses per pole	1.4 W
Tightening torque	0.8...0.8 N.m
Temperature derating table	40 °C ( 25 A ) 50 °C ( 23.8 A ) 60 °C ( 20 A )
Quality labels	RCM
Noise level	30 dB
Heat dissipation	5.6...5.6 W at 50 Hz
Pollution degree	2
Overvoltage category	III
Tropicalisation	severity B
Operating altitude	2000 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.8 cm
Package 1 width	11.1 cm
Package 1 length	12.1 cm
Package 1 weight	269.8 g
Unit type of package 2	S03
Number of units in package 2	42
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	11.832 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.5504382744587725
Carbon footprint of the manufacturing phase [a1 to a3]	0.6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.016848824990583534
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.012580623384319815
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	7.780355805925729
Carbon footprint of the use phase [b2, b3, b4, b6]	8 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.13189220062848603
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	8.492115729387892
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	6763a476-30bc-4d05-a4bb-93f8d65c3771
Oecd pfas declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=MX9C122540_OECD_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=MX9C122540_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Oecd pfas regulation	Item contains PFAS Chemicals
Pop directive	No POPs
End of life manual availability	N/A
Take-back	No
Warranty (in months)	84
