MAX9 Contactor 2 NO, 25A, Ue=240VAC, Uc=24VAC, 1 Module

Home ProductsCircuit ProtectionMax9Contactor

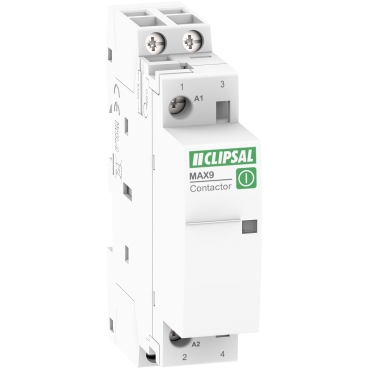

MAX9 Contactor 2 NO, 25A, Ue=240VAC, Uc=24VAC, 1 Module

Item Number: MX9C212520

Product Selector ➚

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height81 mm

Depth icon

Depth63 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
max9 contactor
max9 contactor

Features

  • Compatible with multiple types of screw-drivers with combination head screws
  • Contact status indication window
  • Installation flexibility with the choice of line connection either from top or bottom
  • Designed for touch Aussie conditions with operating temperature range of -5 Deg C to +70 Deg C (derating applies)
  • Designed to last with endurance performance of 100K electrical cycles

Specifications

Design

Range

MAX9

Product or component type

contactor

Device application

control circuit

Product compatibility

no auxiliary

Market segment

residential

Warranty

7-year

Physical

[ie] rated operational current

25 A AC-7A

Control type

remote control

[ue] rated operational voltage

240 V AC 50 Hz

Mounting mode

clip-on

Mounting support

35 mm symmetrical DIN rail

Height

81 mm

Width

18 mm

Depth

63 mm

Net weight

120 g

Mechanical durability

1000000 cycles

Electrical durability

100000 cycles 24 V 25 A AC 50 Hz

Connections - terminals

  • power: tunnel type terminal1 cable(s) 1.5-4 mm² flexible
  • power: tunnel type terminal2 cable(s) 1.5-2.5 mm² flexible
  • power: tunnel type terminal1 cable(s) 1.5-6 mm² rigid
  • power: tunnel type terminal2 cable(s) 1.5-2.5 mm² rigid
  • control: tunnel type terminal1 cable(s) 0.5-4 mm² flexible
  • control: tunnel type terminal2 cable(s) 0.5-2.5 mm² flexible
  • control: tunnel type terminal1 cable(s) 0.5-6 mm² rigid
  • control: tunnel type terminal2 cable(s) 0.5-2.5 mm² rigid

Wire stripping length

10 mm

Ip degree of protection

IP20 (modular enclosure) conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-5...70 °C

Ambient air temperature for storage

-40...70 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110308EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Others

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Poles description

2P

Pole contact composition

2 NO

Network type

AC

Utilisation category

AC-7A

[uc] control circuit voltage

24 V AC 50 Hz

Network frequency

50 Hz

Maximum power

1.3 W at 240 V AC 50 Hz

[ui] rated insulation voltage

500 V AC 50 Hz conforming to EN 61095

[uimp] rated impulse withstand voltage

4 kV

Switching frequency

100 switching operations/day

Hold-in power consumption in va

3.8...3.8 VA

Inrush power in va

15 VA

Comb busbar and distribution block compatibility

NO

9 mm pitches

2

Total power losses

2.8 W

Power losses per pole

1.4 W

Tightening torque

0.8...0.8 N.m

Temperature derating table

  • 40 °C ( 25 A )
  • 50 °C ( 23.8 A )
  • 60 °C ( 20 A )

Quality labels

RCM

Noise level

30 dB

Heat dissipation

2.8...2.8 W at 50 Hz

Pollution degree

2

Overvoltage category

III

Tropicalisation

severity B

Operating altitude

2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.0 cm

Package 1 width

2.3 cm

Package 1 length

10.0 cm

Package 1 weight

131.0 g

Unit type of package 2

S03

Number of units in package 2

88

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

12.028 kg

Total lifecycle carbon footprint

147 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.641966209171611

Carbon footprint of the manufacturing phase [a1 to a3]

0.6 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.016937871216344984

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.00037063145653275725

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

145.926708

Carbon footprint of the use phase [b2, b3, b4, b6]

146 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.017553297340649185

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

146.60353600918512

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

429095ee-388a-4184-bea4-16f87e374975

End of life manual availability

N/A

Take-back

No

Warranty (in months)

84
