MAX9 Contactor 1 NO + 1 NC, 25A, Ue=240VAC, Uc=240VAC, 1 Module

MAX9 Contactor 1 NO + 1 NC, 25A, Ue=240VAC, Uc=240VAC, 1 Module

Item Number: MX9C112511

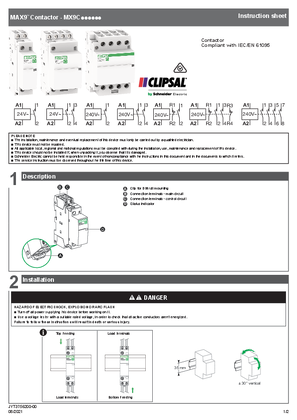

Datasheet

Product Dimensions

Width icon

Width18 mm

Height icon

Height81 mm

Depth icon

Depth63 mm

Barcode

Qty UoM EAN Colour
-
-
-
max9 contactor

Specifications

Design

Range

MAX9

Product or component type

contactor

Device application

control circuit

Product compatibility

no auxiliary

Market segment

residential

Warranty

7-year

Physical

[ie] rated operational current

25 A AC-7A

Control type

remote control

[ue] rated operational voltage

240 V AC 50 Hz

Mounting mode

clip-on

Mounting support

35 mm symmetrical DIN rail

Height

81 mm

Width

18 mm

Depth

63 mm

Net weight

120 g

Mechanical durability

1000000 cycles

Electrical durability

100000 cycles 240 V 25 A AC 50 Hz

Connections - terminals

power: tunnel type terminal1 cable(s) 1.5-4 mm² flexible|power: tunnel type terminal2 cable(s) 1.5-2.5 mm² flexible|power: tunnel type terminal1 cable(s) 1.5-6 mm² rigid|power: tunnel type terminal2 cable(s) 1.5-2.5 mm² rigid|control: tunnel type terminal1 cable(s) 0.5-4 mm² flexible|control: tunnel type terminal2 cable(s) 0.5-2.5 mm² flexible|control: tunnel type terminal1 cable(s) 0.5-6 mm² rigid|control: tunnel type terminal2 cable(s) 0.5-2.5 mm² rigid

Wire stripping length

10 mm

Ip degree of protection

IP20 (modular enclosure) conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-5...70 °C

Ambient air temperature for storage

-40...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP110308EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Poles description

2P

Pole contact composition

1 NO + 1 NC

Network type

AC

Utilisation category

AC-7A

[uc] control circuit voltage

240 V AC 50 Hz

Network frequency

50 Hz

Maximum power

1.2 W at 240 V AC 50 Hz

[ui] rated insulation voltage

500 V AC 50 Hz conforming to EN 61095

[uimp] rated impulse withstand voltage

2.5 kV

Switching frequency

100 switching operations/day

Hold-in power consumption in va

2.7...2.7 VA

Inrush power in va

9.2 VA

Comb busbar and distribution block compatibility

NO

9 mm pitches

2

Total power losses

1.4 W

Power losses per pole

1.4 W

Tightening torque

0.8...0.8 N.m

Temperature derating table

40 °C ( 25 A ) |50 °C ( 23.8 A ) |60 °C ( 20 A )

Quality labels

RCM

Noise level

30 dB

Heat dissipation

1.4...1.4 W at 50 Hz

Pollution degree

2

Overvoltage category

III

Tropicalisation

severity B

Operating altitude

2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.0 cm

Package 1 width

2.3 cm

Package 1 length

10.0 cm

Package 1 weight

131.0 g

Unit type of package 2

S03

Number of units in package 2

88

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

12.028 kg

Scip number

361e1245-bdfb-4c55-bca5-ee0430c46917

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

131.59510967639324
