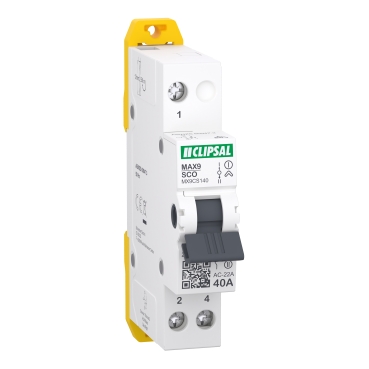

MAX9 Changeover switch 1P, 40A, 230/240VAC

MAX9 Changeover switch 1P, 40A, 230/240VAC

Item Number: MX9CS140

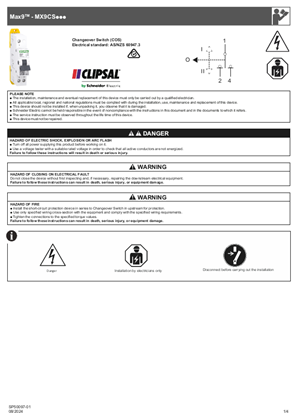

Datasheet

Product Dimensions

Width icon

Width17.5 mm

Height icon

Height85 mm

Depth icon

Depth44 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX9

Product or component type

changeover switch

Device application

change source of supply

Market segment

  • residential
  • small buildings

Physical

[ue] rated operational voltage

230/240 V

Control type

toggle

Mounting support

35 mm DIN rail

Mounting position

  • vertical
  • any position

Connections - terminals

  • screw terminals (top and bottom) 1-10 mm² flexible
  • screw terminals (top and bottom) 1-10 mm² flexible with ferrule
  • screw terminals (top and bottom) 1-16 mm² rigid

Wire stripping length

12 mm for top and bottom connection

Electrical durability

7000 cycles

Mechanical durability

10000 cycles

Height

85 mm

Width

17.5 mm

Depth

44 mm

Net weight

85 g

Standards

  • EN/IEC 60947-3
  • AS/NZS 60947-3

Ip degree of protection

  • IP20
  • IP40 inside enclosure

Ambient air temperature for operation

-25...60 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

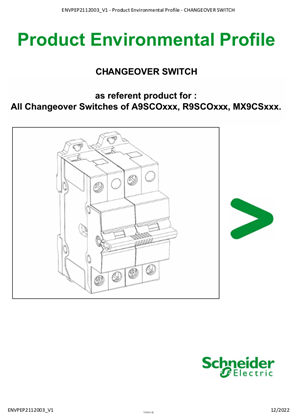

ENVPEP2112003EN

Circularity profile

N/A

Others

Commercial status history

  • SESA65410
  • Thu Aug 29 21:05:00 EDT 2024
  • From Unitary Local
  • From 06 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

90

Package 3 bare product quantity

1080

Poles description

1P

Network type

AC

Network frequency

50/60 Hz

Utilisation category

  • AC-23A
  • AC-22A

[ui] rated insulation voltage

690 V

[uimp] rated impulse withstand voltage

6 kV

Rated operational power in w

  • 5 kW at 240 V (AC-23A)
  • 7.4 kW at 230 V (AC-22A)
  • 7.7 kW at 240 V (AC-22A)
  • 4.8 kW at 230 V (AC-23A)

[icm] rated short-circuit making capacity

0.8 kA

[icw] rated short-time withstand current

0.8 kA during 1 s at 230/240 V

Number of contact position

3

Locking options description

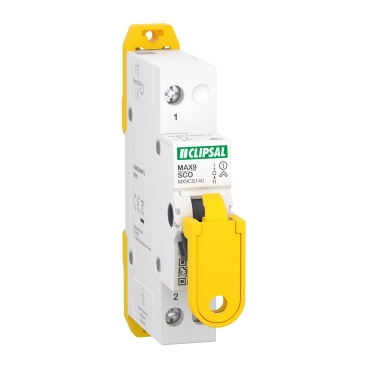

padlock in ON position

Tightening torque

2.5...2.5 N.m top and bottom

Suitability for isolation

yes

Contact position indicator

yes

9 mm pitches

2

Pollution degree

3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.6 cm

Package 1 width

2.7 cm

Package 1 length

10.9 cm

Package 1 weight

110 g

Unit type of package 2

S03

Number of units in package 2

90

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

10.3 kg

Unit type of package 3

P06

Number of units in package 3

1080

Package 3 height

104.6 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

133 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

0dbcf8b1-4732-4e36-88bc-462a078c2d4c

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

57.44240223800542

Global warming ; total life cycle​

57 kg CO2 eq.

Minimum percentage of recycled plastic content

0
