MAX9 Cartridge Surge Protection Device SPD, 1P, 40kA
Item Number: MX9SP40C
Specifications
Design
| Range | MAX9 |
|---|---|
| Product or component type | surge arrester |
| Device application | distribution |
| Warranty | 7-year |
Physical
| [ue] rated operational voltage | 240 V +/- 6 % AC 50/60 Hz |
|---|---|
| Local signalling | white/red flag |
| Mounting mode | clip-on |
| Mounting support | DIN rail |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 64 mm |
| Net weight | 51 g |
| Standards |
|
| Ip degree of protection | IP20 DIN rail |
| Ik degree of protection | IK03 conforming to IEC 62262 |
| Relative humidity | 5...95 % at 55 °C |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...85 °C |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
CAD Files and Packs
-

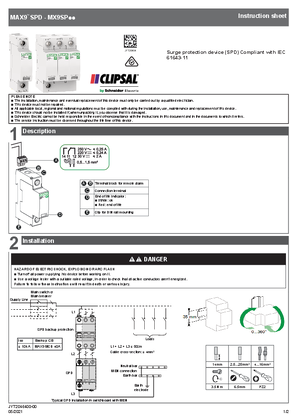

Installation Instruction
-

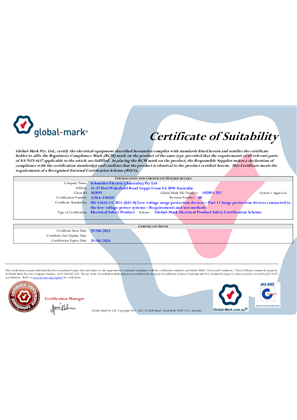

Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
Frequently Asked Questions
I need to replace the cartridge in my Max 4 Surge arrestor what can I use?
Hide Show
The Max 9 cartridge, MX9SP40C, will suit as a replacement but will look different with the updated graphics on the product.
What is the backup protection device for MAX9 SPD?
Hide Show
We recommend using MAX9 MCB backup protection device for MAX9 SPD.
You can use 1P 40A MCB (MX9MC140) for 1P SPD (MX9SP140), and 3P 40A MCB (MX9MC340) for 3P SPD
(MX9SP340).
You can use 1P 40A MCB (MX9MC140) for 1P SPD (MX9SP140), and 3P 40A MCB (MX9MC340) for 3P SPD
(MX9SP340).
