MAX9 PRO Incomer Conversion Kit, with C120 MCB 125A

Item Number: MX9DBKC120

1 PCE 0

The kit is designed to change from incomer switch disconnector to MCB. The kit supports easy installation of C120 MCB incomer up to 125A. The kit consists of connection links, neutral terminal block, shrouds and spacers.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487401711	-
8	S03	23606487401715	-

Specifications

Design

Range	MAX9
Product or component type	Incomer MCB conversion kit

Physical

Range compatibility	MAX9 PRO distribution board
Provided equipment	spreader link (4 ) neutral terminal block (1 ) DIN rail (4 )
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2505036EN
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Kit
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	8
Package 3 bare product quantity	144
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Accessory / separate part category	enclosure accessory
Poles description	3P + N
Connection pitch	27 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.8 cm
Package 1 width	7.8 cm
Package 1 length	15.8 cm
Package 1 weight	1 kg
Unit type of package 2	S03
Number of units in package 2	8
Package 2 height	30 cm
Package 2 width	30 cm
Package 2 length	40 cm
Package 2 weight	8.75 kg
Unit type of package 3	P12
Number of units in package 3	144
Package 3 height	105 cm
Package 3 width	114 cm
Package 3 length	114 cm
Package 3 weight	166 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	24 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	19.147390653393465
Carbon footprint of the manufacturing phase [a1 to a3]	19 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.0400539488238663
Carbon footprint of the distribution phase [a4]	1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.5395838649124066
Carbon footprint of the installation phase [a5]	0.5 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	3.4621711997369746
Carbon footprint of the end-of-life phase [c1 to c4]	3 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	24.189199666866713
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

MAX9 PRO Catalogue

VERSION

1.3

DATE

22 Sept 2026

REVISION

1.3

DOWNLOAD (ZIP) 26.1 MB

ZIP

MAX9 Switchboard Enclosure

VERSION

1.0

DATE

03 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 291.6 KB

ZIP

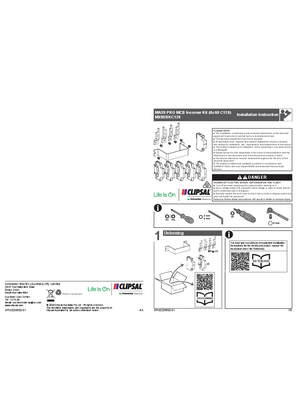

MAX9 PRO Incomer kit - Instruction Sheet
