Max 4 Consumer Switchboards Switchboard Enclosure Series 4CC, 45 Module, Surface Mount, Full DIN Rail | White Electric
Item Number: 4CC45SB-WE

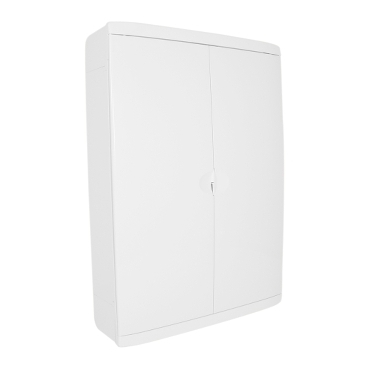

This MAX4 switchboard is a surface mounted distribution enclosure. This switchboard is composed of 3 rows of 15 modules of 18mm. It can accommodate all types of modular switchgear. The colour of the switchboard is white electric.
Specifications
Design
| Range of product | Series 4CC |
|---|---|
| Product brand | Clipsal |
Physical
| Device mounting | surface |
|---|---|
| Height | 666 mm |
| Width | 376 mm |
| Depth | 115 mm |
| Mounting support | DIN rail |
| Environmental disclosure | ENVPEP1210018EN |
| Eu rohs directive | Not Applicable/Out of Scope |
