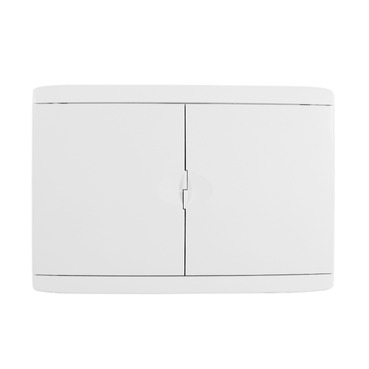

Max 4 Consumer Switchboards Switchboard Enclosure Series 4CC, 15 Module, Surface Mount, Shallow Base | White Electric
Item Number: 4CC15SB-WE
Specifications
Design
Range
MAX4
Product brand
Clipsal
Physical
Device mounting
surface
Height
258 mm
Width
376 mm
Depth
115 mm
Mounting support
DIN rail
Ip degree of protection
IP40
Eu rohs directive
Under investigation
Environmental disclosure
ENVPEP121018EN
Circularity profile
N/A
Material
Material
plastic: housing
Others
Commercial status history
- SESA65410
- Tue Mar 19 22:08:00 EDT 2024
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Number of horizontal rows
1
Number of modules
15
Cover type
closed cover
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
12.2 cm
Package 1 width
38.2 cm
Package 1 length
27.1 cm
Package 1 weight
2020.0 g
