Clipsal - Max 4 Surge Protection Device (SPD) 3P Imax 40 kA
Item Number: 940RMT/3
This MAX4 product is a modular and reliable Surge arrester. it is a 3P, rated current is 40kA, and operating voltage is 240VAC. The operating temperature is -25°C to +60°C. The storage temperature is . The degree of protection is IP20 and IP40 in an enclosure. It is 35mm DIN rail mountable. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 85mm x (D) 64mm. This Surge arrester is used for control. This product is compliant with IEC 61643-11.
Specifications
Design
| Range | MAX4 |
|---|---|
| Product or component type | surge arrester |
Physical
| [ue] rated operational voltage | 240/415 V +/- 10 % AC 50/60 Hz |
|---|---|
| Local signalling | white/red flag |
| Mounting mode | clip-on |
| Mounting support | 35 mm DIN rail |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 64 mm |
| Connections - terminals |
|
| Wire stripping length | 14 mm |
| Standards | IEC 61643-11:2011 |
| Ip degree of protection |
|
| Relative humidity | 5...95 % |
| Ambient air temperature for operation | -25...60 °C |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1303003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-

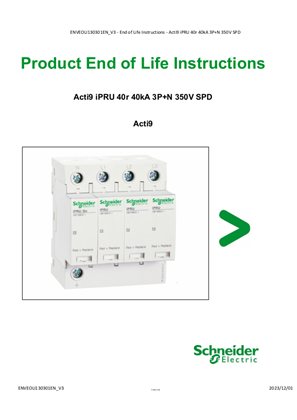

End of Life Manual
-
Environmental Disclosure
-

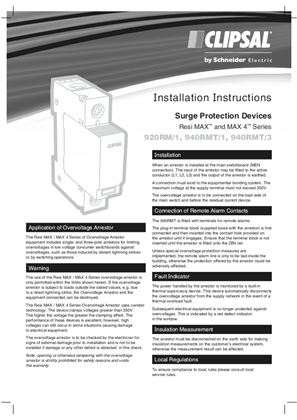

Installation Instruction
-

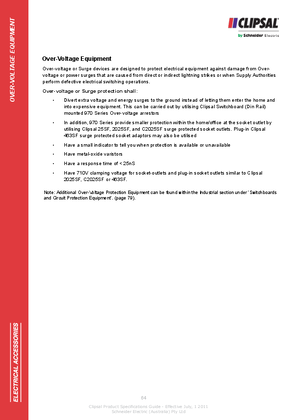

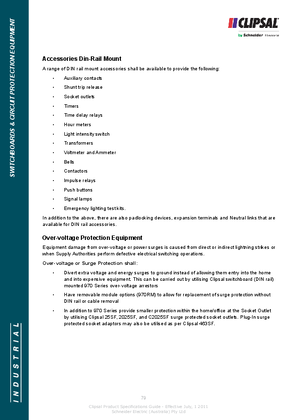

Specification Guide
-
Declaration of Conformity (Sustainability)
Frequently Asked Questions
I need to replace the cartridge in my Max 4 Surge arrestor what can I use?
Hide Show
The Max 9 cartridge, MX9SP40C, will suit as a replacement but will look different with the updated graphics on the product.
