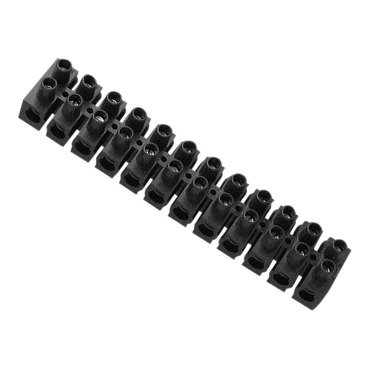

Max 4 Link Bars Strip Connector 75A, Heavy Duty, 12 Terminal

Home ProductsCircuit ProtectionMax 4Strip Connector

Max 4 Link Bars Strip Connector 75A, Heavy Duty, 12 Terminal

Item Number: BP365N

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793002264	-
10	CRT	9318793012577	-
100	CAR	19318793002261	-

Specifications

Design

Product brand	Clipsal
Range of product	Blue Point

Physical

[in] rated current	75 A
Number of poles	12
Mounting support	panel
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1210019EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 weight	0.28 kg
Sustainable packaging	No
Scip number	c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability	N/A
Warranty (in months)	18

Show all specifications
