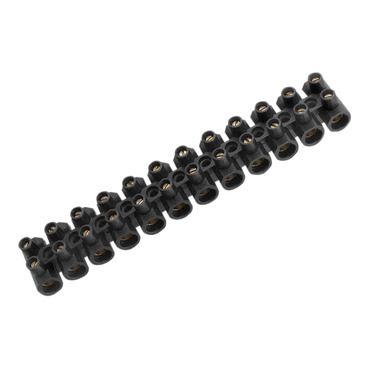

Max 4 Link Bars Strip Connector 30A, Plastic Heavy Duty, 12 Terminal Available Bk Or Tr
Item Number: BP535
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Blue Point
Physical
[in] rated current
30 A
Connector type
- 1 screw terminals
- 2 screw terminals
Number of poles
12
Mounting support
panel
Width
grid pattern: 28 mm
Length
175 mm
Ambient air temperature for operation
100 °C
Standards
CS/840/N
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP121019EN
Circularity profile
N/A
Material
Material
flameproof high-impact polystyrene: insulation
Others
Package 1 bare product quantity
1
Cable cross section
4 mm² fine stranded without cable end sleeve
Minimum mounting height
21 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 cm
Package 1 width
3 cm
Package 1 length
17.3 cm
Package 1 weight
107.1 g
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
