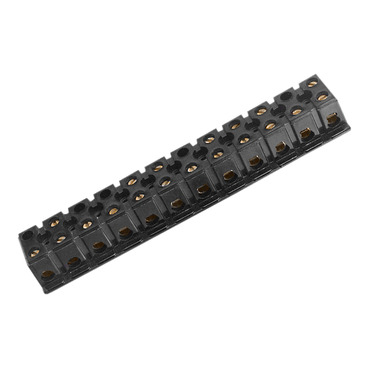

Max 4 Link Bars Strip Connector 20A, 12 Terminal, Double Entry, 2 Way, Platform Bakelite
Item Number: BP7PP
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Blue Point
Physical
[in] rated current
20 A
Connector type
- 1 screw terminals
- 2 screw terminals
Number of poles
12
Mounting support
panel
Width
grid pattern: 25 mm
Length
136 mm
Ambient air temperature for operation
190 °C
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP121019EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
bakelite: insulation
Others
Legacy weee scope
In
Weee label
N/A
Outside of Europe
Package 1 bare product quantity
1
Distance between centers
hole: 10.6 mm
Cable cross section
6 mm² fine stranded without cable end sleeve
Minimum mounting height
17 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.6 cm
Package 1 width
2.2 cm
Package 1 length
13.4 cm
Package 1 weight
0.068 kg
Sustainable packaging
No
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability
N/A
Warranty (in months)
18
