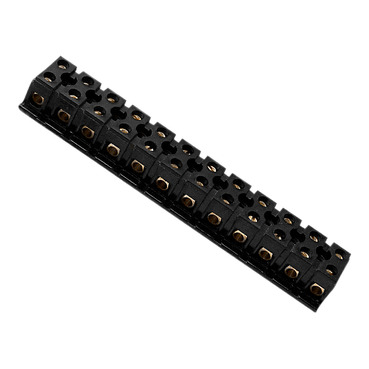

Max 4 Link Bars Strip Connector 20A, 12 Terminal, Double Entry, 2 Way, Platform Bakelite

Item Number: BP7

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793003049	-
20	CRT	9318793003056	-
200	CAR	19318793003046	-

Specifications

Design

Product brand	Clipsal
Range of product	Blue Point

Physical

[in] rated current	20 A
Connector type	1 screw terminals 2 screw terminals
Number of poles	12
Mounting support	panel
Width	grid pattern: 25 mm
Length	136 mm
Ambient air temperature for operation	190 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1210019EN
Eu rohs directive	Compliant By Exemption

Material

Material	bakelite: insulation

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Weee applicability	Finished product
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
Distance between centers	hole: 10.6 mm
Cable cross section	6 mm² fine stranded without cable end sleeve
Minimum mounting height	17 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.7 cm
Package 1 width	2.5 cm
Package 1 length	13.9 cm
Package 1 weight	66.2 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.33603120000000003
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.009955156
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.018391684000000002
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.18383078
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.54820882
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
