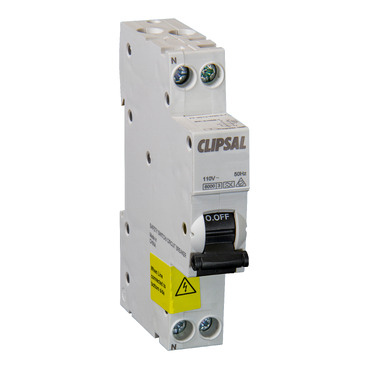

Clipsal - Max 4 RCD/MCB 1P+N, 1 Module, 16A, 6kA, 110V, 30mA, Slim
Item Number: 4RCBE216S110
Datasheet
Specifications
Design
| Range | MAX4 |
|---|---|
| Product or component type | residual current breaker with overcurrent protection (RCBO) |
| Product brand | Clipsal |
| Device application | distribution |
Physical
| [in] rated current | 16 A |
|---|---|
| [ue] rated operational voltage | 110 V AC |
| Local signalling | ON/OFF indication |
| Mounting mode | clip-on |
| Mounting support | DIN rail |
| Ip degree of protection |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP100702EN_V1 |
| Eu rohs directive | Compliant |
