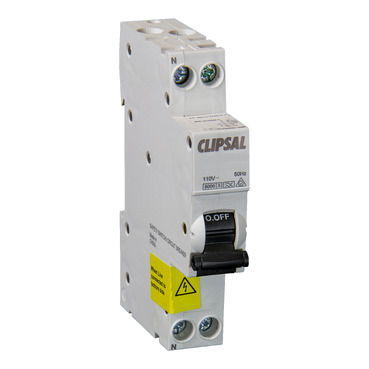

Clipsal - Max 4 RCD/MCB 1 Module, 1P+N, 32A, 6KA, 110V, 30mA, Slim

Home ProductsCircuit ProtectionMax 4RCD/MCB

Clipsal - Max 4 RCD/MCB 1 Module, 1P+N, 32A, 6KA, 110V, 30mA, Slim

Item Number: 4RCBE232S110

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal - Series 4

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Device application

distribution

Physical

[in] rated current

32 A

[ue] rated operational voltage

110 V AC

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Ip degree of protection

  • IP20 conforming to IEC 60529
  • IP40 (modular enclosure) conforming to IEC 60529

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP100702EN_V1

Eu rohs directive

Compliant

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Warranty duration(in months) bmecat

18

Weee label

N/A

Poles description

1P + N

Neutral position

left

Number of modules

1

Number of protected poles

1

Network type

AC

Trip unit technology

thermal-magnetic

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Breaking capacity

6 kA

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.002 cm

Package 1 width

0.008 cm

Package 1 length

0.01 cm

Package 1 weight

0.141 kg

Sustainable packaging

No

Warranty (in months)

18
Show all specifications
