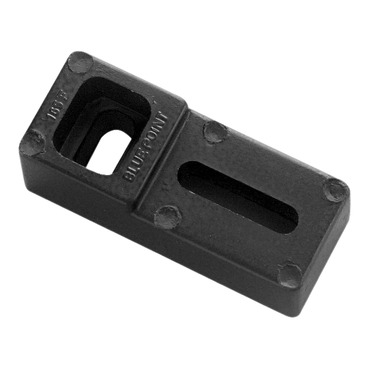

Clipsal - Max 4 Moulded mounting block to suit bare link

Item Number: BP165F

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9318793001892	-
50	CRT	9318793504386	-
500	CAR	19318793001899	-

Specifications

Design

Product brand	Clipsal

Physical

Length	45 mm
Width	18 mm
Depth	16 mm
Ambient air temperature for operation	190 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206007EN
Eu rohs directive	Compliant

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of bio-based plastic content	0 %
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.7 cm
Package 1 width	2.4 cm
Package 1 length	5.3 cm
Package 1 weight	14 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.1056954604
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0014150713
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0017686494
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.1088791812
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
