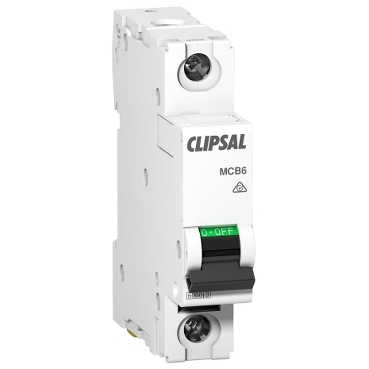

Clipsal - Max 4 Miniature Circuit Breaker C - Curve, 1 Pole, 1 Module, 240V, 63A, 6KA
Item Number: MCB6-163
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Physical
Number of poles
1
[in] rated current
63 A
[ue] rated operational voltage
240 V
Ip degree of protection
IP20 conforming to IEC 60529
Ambient air temperature for operation
-5...40 °C
Standards
IEC 60898
Product certifications
- CE: N17682
- ACMA: N11193
- RCM: N5400
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Curve code
C
Number of modules
1
Breaking capacity
6 kA conforming to EN 60898
Network type
AC
Network frequency
50/60 Hz
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.2 cm
Package 1 width
1.8 cm
Package 1 length
8.5 cm
Package 1 weight
122 g
Halogen content performance
Halogen free product
Halogen content performance
Halogen free product
