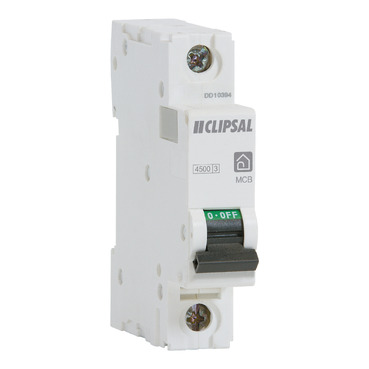

Clipsal Resi MAX Miniature circuit breaker 1P 25 A C curve 4500 A 240V
Item Number: MCB4-125
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | Resi MAX |
Physical
| Number of poles | 1 |
|---|---|
| [in] rated current | 25 A |
| [ue] rated operational voltage | 240 V |
| Mechanical durability | 20000 cycles |
| Electrical durability | 10000 cycles |
| Connections - terminals |
|
| Wire stripping length | 13 mm |
| Ip degree of protection |
|
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...70 °C |
| Standards | AS/NZS 60898 |
| Relative humidity | 95 % at 55 °C |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net weight | 115 g |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1304004_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
-
All
-
Product Brochures
-
CAD Files and Packs
-
Declaration of Conformity (Sustainability)
The only Great White protection range, 23589
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Clipsal Resi MAX Circuit Protection - The complete residential solution, 124301
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Resi MAX circuit protection, 141178
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Circuit Protection Resi MAX™ Solutions for Everyday Residential Needs
VERSION
2.0
DATE
21 Mar 2023
REVISION
2.0
Choosing the correct surge protection equipment. An easy to use guide for contractors
VERSION
1.0
DATE
10 Dec 2018
REVISION
1.0
Surge Protection Product Guide
VERSION
1.0
DATE
10 Dec 2018
REVISION
1.0
MCB4-125 EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
MCB4-125 EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
MCB4-125 EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
MCB4-125 EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
MCB4-125 REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
MCB4-125 REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Resi MAX: Circuit Protection for Australian Homes
Resi MAX is a very simple range to cover essential circuit protection needs for Australian homes. Resi MAX range helps to provide optimised solution for single phase applications with carefully chosen range of plastic enclosures, surge protection, miniature circuit breakers, isolator switch, RCDs and RCBOs.
Slim Comb busbars and accessories are also available to simplify the installation with SLIM RCBOs and help to improve installation speed by up to 10 times. Plastic enclosures in this range are optimised to provide the best balance of aesthetics, wiring space and value for money.
Products in this range are must haves for each electrician’s van as it helps to optimise installation costs without compromising on quality or performance. All Resi MAX devices provide full flexibility to the installer with the option of feeding them either from top or bottom side. All products comply to relevant Australian standards for complete peace of mind.
